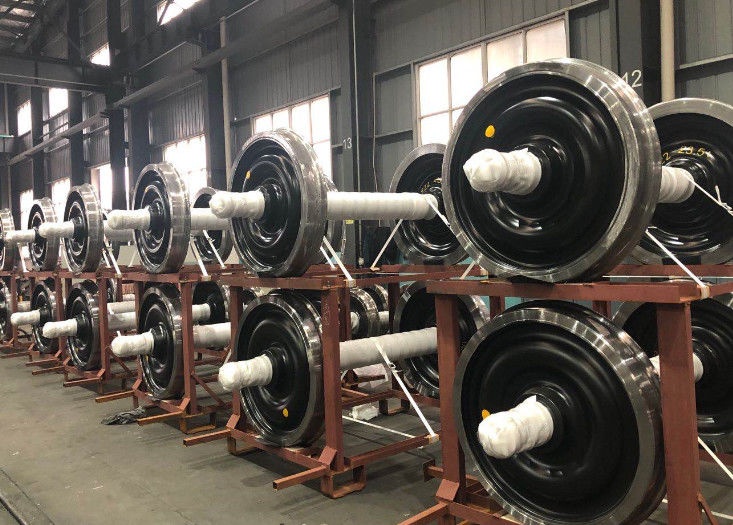

High-Performance Railway AAR  Wheelsets for Heavy-Haul Railroad

The railway wheelset is the most critical safety component of a rail vehicle's undercarriage. As the direct interface between the train and the track, it must withstand immense dynamic loads, high speeds, and extreme braking temperatures. Our wheelset assemblies are engineered for maximum reliability, combining precision-forged axles with high-durability monoblock wheels to ensure the safety of global freight and passenger operations.

1. Technical Specifications & Manufacturing Excellence

We provide fully integrated wheelset solutions manufactured under stringent quality controls:

• Forged Axles: Produced from high-quality vacuum-degassed steel, compliant with AAR M-101, EN 13261, or GOST 31334 standards. Our axles feature superior fatigue strength and are available in solid or hollow designs.

• Monoblock Wheels: High-carbon steel forged wheels designed for heat dissipation and wear resistance. Compliant with AAR M-107/M-208 and UIC 812-3 specifications.

• Precision Press-fit Assembly: Our state-of-the-art hydraulic pressing facilities ensure a perfect interference fit between the wheel and axle. Every assembly is accompanied by a digital press-fit record (Pressure vs. Displacement graph) to guarantee structural integrity

• Technical Specifications Table

Parameter	Specification
Axle Standard	AAR M-101
Axle Material	AAR M-101 Grade F (Forged Carbon Steel)
Axle Heat Treatment	Double normalized and tempered
Wheel Standard	AAR M-107 / M-208
Wheel Material Grades	Class A, B, C, D
Wheel Diameters	28″, 33″, 36″, 38″
Assembly Method	Cold press-fitting
Max Speed	Up to 120 km/h (75 mph)
Max Axle Load	Up to 23.5–30 tons
Gross Rail Load	Up to 286,000 lbs
Quality Standard	AAR M-1003
Inspection Methods	UT, MT, Chemical, Metallographic, Mechanical, Hardness

2. Industry Standards & Load Capabilities

Our wheelsets are designed for diverse global rail environments, from standard gauge to broad gauge systems:

• Heavy-Haul Capacity: Optimized for high-axle loads, including 25-ton, 30-ton, and 32.5-ton (and up to 35.5-ton) configurations for mining and bulk freight.

• Global Compliance: Fully certified to meet AAR (North America), TSI (Europe), GOST (CIS), and AS (Australia) railway standards.

• Interchangeability: 100% compatible with major bogie types, including Barber S-2, Ride Control, and 18-100 series.

3. Advanced Testing & Quality Assurance

Safety is non-negotiable. Every railway wheelset undergoes a comprehensive suite of Non-Destructive Testing (NDT):

• Ultrasonic Testing (UT): Detecting internal volumetric flaws in both wheels and axles to ensure material purity.

• Magnetic Particle Inspection (MPI): Identifying surface and sub-surface cracks or irregularities.

• Static Balancing: Ensuring smooth rotation at high speeds to minimize track wear and vehicle vibration.

• Hardness Testing: Verifying the Brinell hardness (HBW) of wheel treads for optimal wear life.

4. Maintenance & Service Life Extension

• Induction Hardening: Optional heat treatment for axle journals to increase surface hardness and reduce bearing-related wear.

• Superior Coating Systems: Applied with high-performance anti-corrosion paints or zinc-rich primers to protect against environmental degradation in coastal or industrial areas.

• Re-wheeling Services: Our designs facilitate easier maintenance and wheel replacement, reducing the Total Cost of Ownership (TCO) for fleet operators.

5. Quality Inspection and Application

• Freight Wagons: Gondolas, hopper cars, tank cars, and intermodal flat cars.

• Locomotives: High-tractive effort wheelsets for diesel-electric and electric locomotives.

• Passenger Coaches: High-speed and metro wheelsets designed for passenger comfort and noise reduction.
