High-Performance Railway Bogie Suspension Springs

The Bogie Spring is a critical component of the primary and secondary suspension systems in railway freight wagons and locomotives. Designed to support the car body weight and absorb dynamic shocks from track irregularities, these helical compression springs are essential for maintaining ride quality and protecting the vehicle structure and cargo from excessive vibration.

1. Material Selection & Metallurgy

To ensure maximum resilience and longevity under heavy-haul conditions, our springs are manufactured from premium alloy steels:

• High-Alloy Spring Steel: Primarily produced from 60Si2Mn, 51CrV4, or AAR-specified alloy steels. These materials offer high elastic limits and superior fatigue resistance.

• Shot Peening Technology: Every spring undergoes controlled shot peening to introduce compressive residual stress on the surface, significantly extending the fatigue life by preventing micro-crack initiation.

• Hot-Coiling Process: Utilizing advanced CNC hot-coiling machines to ensure precise wire diameter and coil pitch, followed by rigorous oil quenching and tempering.

2. AAR Standard Groupings & Compatibility

Our suspension springs are designed to meet the AAR M-114 specification, categorized into specific groups to ensure balanced truck performance:

• Standard Groups: Available in AAR Group B, Group C, and Group D configurations for standard freight trucks (e.g., Barber S-2, Ride Control).

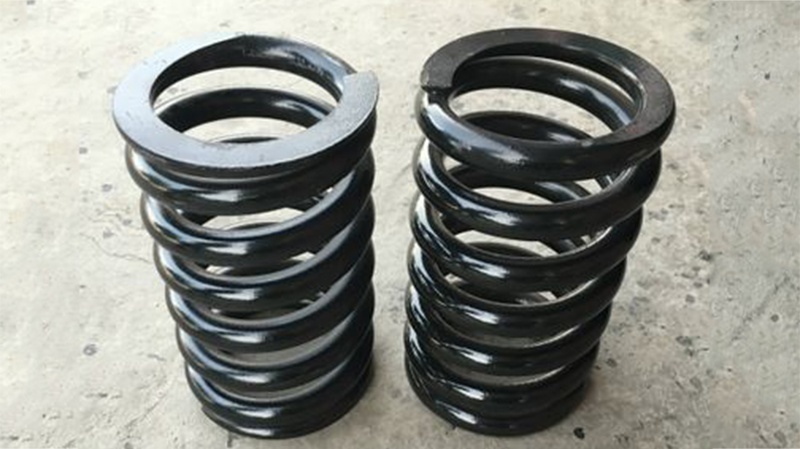

• Inner & Outer Springs: We supply both Outer Springs and Inner Springs (concentric sets) with precisely matched heights to ensure uniform load distribution across the spring nest.

• Side Spring / Snubber Springs: Specialized friction casting springs (snubbers) designed to provide consistent damping force for the bogie's friction wedges.

3. Precision Engineering & Performance

• Load-Deflection Consistency: Our springs are tested and color-coded based on their static load height. This allows for "matched sets" installation, preventing tilted car bodies and uneven wheel loading.

• End Coil Grinding: The ends of the springs are precision-ground (typically 270° to 330° squareness) to ensure vertical alignment and minimize lateral bowing under compression.

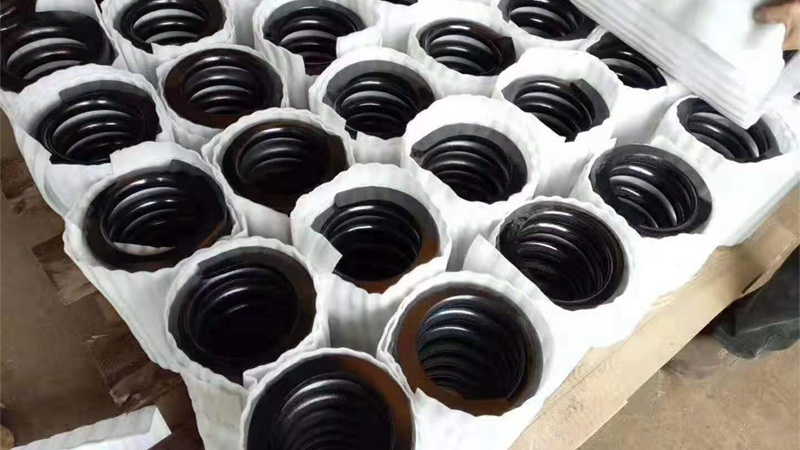

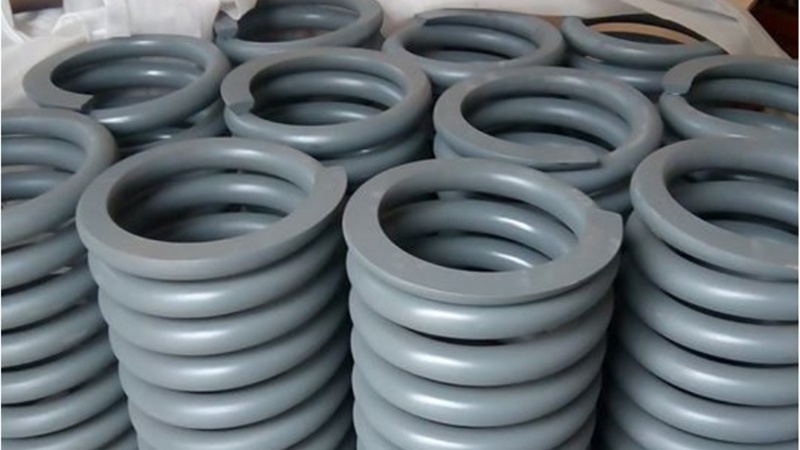

• Corrosion Protection: Finished with heavy-duty powder coating, electro-phoretic painting (EDP), or specialized anti-rust oils to withstand salt spray and harsh rail environments.

4. Quality Control & Safety Testing

Safety in the suspension system is non-negotiable. Our quality protocols include:

• Magnetic Particle Inspection (MPI): 100% inspection for surface longitudinal or transverse cracks after heat treatment.

• Permanent Set Test: Springs are compressed to solid height multiple times to ensure no loss of free height during service.

• Fatigue Life Verification: Laboratory testing validated to exceed 1,000,000 cycles under maximum operational stress.

5. Maintenance & Replacement Guidelines

• Visual Inspection: Regularly check for broken coils, excessive rust (pitting), or "bottoming-out" marks on the coils.

• Height Measurement: If the free height of the spring deviates from the original specification by more than AAR limits (typically 1/2"), the entire spring nest should be replaced as a set.

• Symmetry: Never mix new and used springs in the same spring nest, as this leads to uneven load distribution and premature failure of the new components.
