Understanding the Core of Railway Safety: A Comprehensive Guide to Wheelset Technology and Maintenance

Introduction: The Critical Role of Wheelsets in Modern Rail Transport

In the railway industry, the wheelset is more than just a pair of wheels on an axle; it is the most critical safety component of the bogie. As the only point of contact between the vehicle and the track, it supports the entire weight of the wagon while managing traction, braking, and guidance. For heavy-haul mining operations and high-speed freight, the quality and precision of the wheelset directly determine operational efficiency and safety.

1. Engineering Excellence: The Components of a High-Performance Wheelset

A standard professional wheelset assembly consists of three high-precision components working in harmony:

The Axle (Structure of the Bone): Forged from high-strength alloy steel, the axle features specialized zones such as the Journal (where bearings are mounted) and the Wheel Seat. The wheel seat utilizes an interference fit (press-fitting) to secure the wheels without the need for bolts, ensuring immense structural stability.

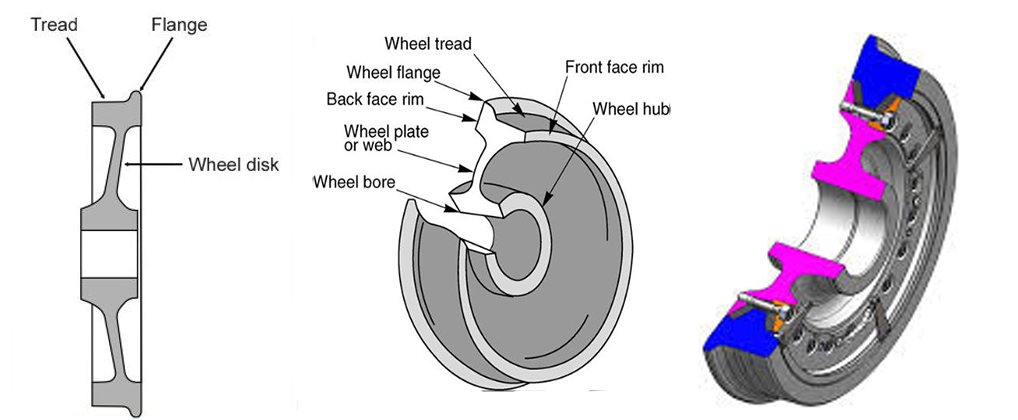

The Wheels (The Muscle of Motion): Modern rail systems primarily use Monobloc Steel Wheels. These consist of the Hub (the interface with the axle), the Web/Plate (which absorbs thermal stress and vibration), and the Rim.
The Bearing Assembly: High-capacity systems often utilize Tapered Roller Bearings, especially in freight applications following AAR standards, to ensure smooth rotation under heavy loads.

2. Technical Specifications & International Standards

To ensure global interoperability and safety, our products adhere to rigorous international technical specifications:

AAR (Association of American Railroads): The gold standard for freight wagon components.
EN 13260 / 13261: European standards governing the delivery conditions of wheelsets and axle
UIC (International Union of Railways): Widely utilized across Asian, African, and European market

Below is a summary of the critical technical parameters we monitor:

Technical Category	Key Parameters	Industry Significance
Axle & Hub Dimensions	Hub Bore, Journal Diameter (J), Fit Tolerances	Determines press-fit force and high-speed stability.

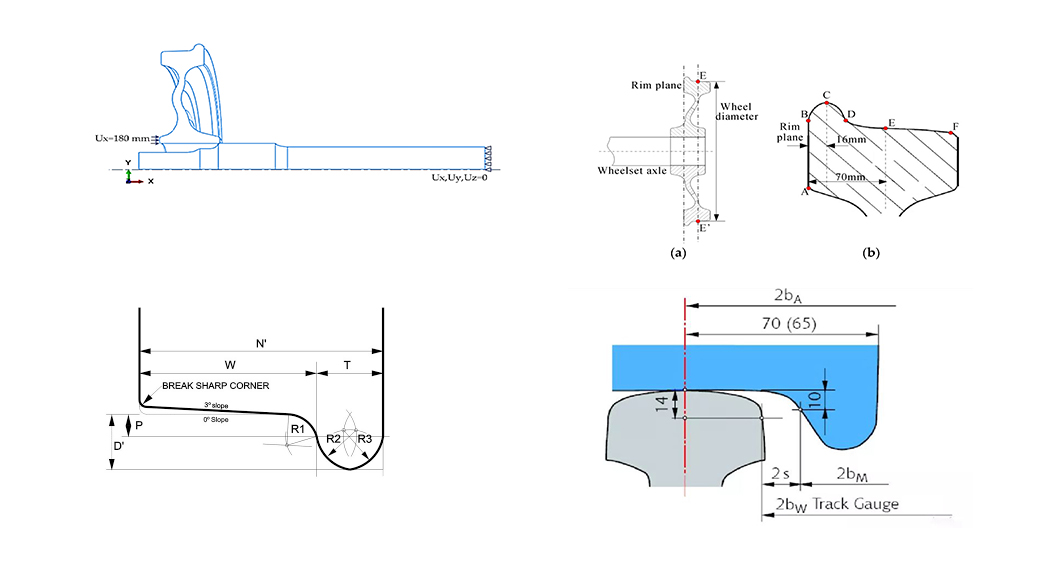

Rim & Tread Geometry	Flange Width/Height (FW/FH), Wheel Width	Establishes wear limits and ensures track compatibility.
Wheelset Interaction	Back-to-Back Dimension	The core metric to prevent derailment.

3. Advanced Dynamics: Why Trains Stay on Track

The secret to rail guidance lies in the Tread Conicity. By designing the tread with a specific taper (typically 1:10 or 1:20), the wheelset achieves Self-Centering. This geometric precision allows the wheels to navigate curves safely by adjusting their rolling radii, eliminating the need for a steering mechanism.

4. Safety First: Maintenance and Inspection

Given the extreme conditions of heavy-haul transport—with axle loads reaching 25, 30, or even 35 tons—regular inspection is vital. We utilize advanced Non-Destructive Testing (NDT), including Ultrasonic (UT) and Magnetic Particle (MT) inspection, to detect fatigue cracks before they become critical. Key wear indicators include:

Tread Wear: Excessive wear leads to increased vibration.
Flange Thickness: Thinning flanges significantly increase the risk of derailment.
Shelling & Flat Spots: Often caused by improper braking, these can damage both the wheel and the rail.

Conclusion

Investing in high-quality wheelset components is an investment in the longevity of your rail fleet. Whether you are operating in South American mines or African freight corridors, understanding these technical foundations ensures a safer, more efficient journey.
