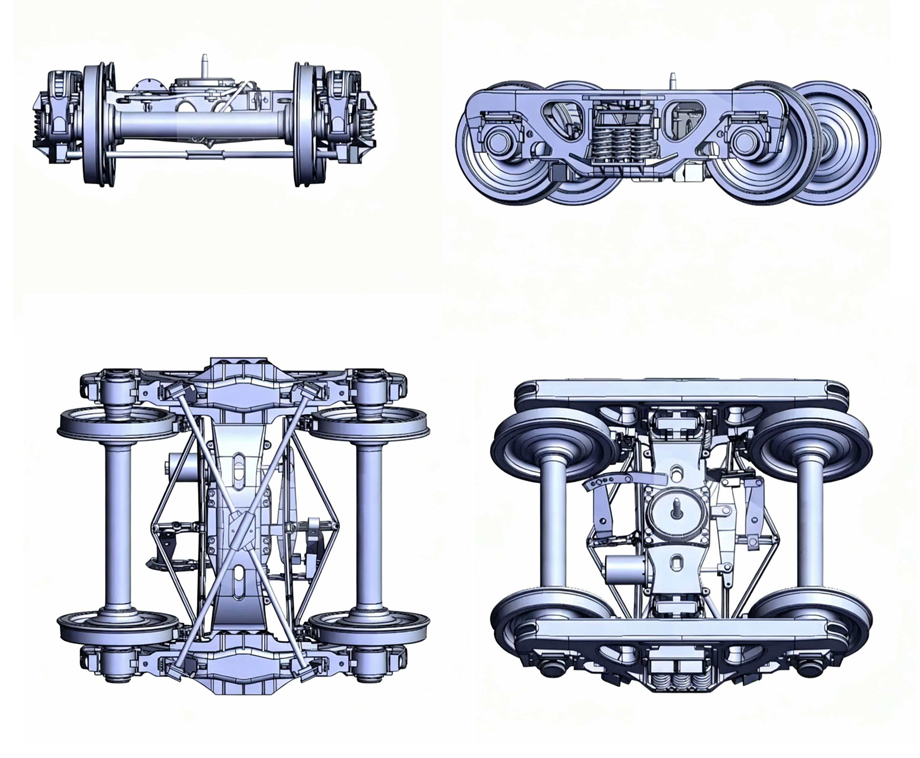

 1. Introduction: What Is a Railway Freight Car Bogie?

The railway freight car bogie (also known as a railroad car truck in North American terminology) is the fundamental running gear assembly that supports, guides, and cushions every freight wagon on the rails. It is the critical interface between the wagon body and the track, responsible for load-bearing, steering through curves, vibration damping, and braking force transmission.

Modern freight car bogies are engineered for durability, interchangeability, and compliance with rigorous international standards. The most widely adopted standards include:

• AAR (Association of American Railroads) – the dominant standard for North American freight rail, covering everything from wheels and axles to side frames and bearings

• EN (European Norms) – particularly EN 13262 for wheels and EN 13261 for axles, governing European railway applications

• GB/T (Chinese National Standards) – governing freight operations across China's vast rail network

• UIC (International Union of Railways) – providing supplementary guidelines for bogie strength and running gear testing

This guide provides a comprehensive, technically detailed examination of freight car bogie components, material specifications, performance standards, maintenance protocols, and emerging technologies.

2. Key Components & Technical Specifications

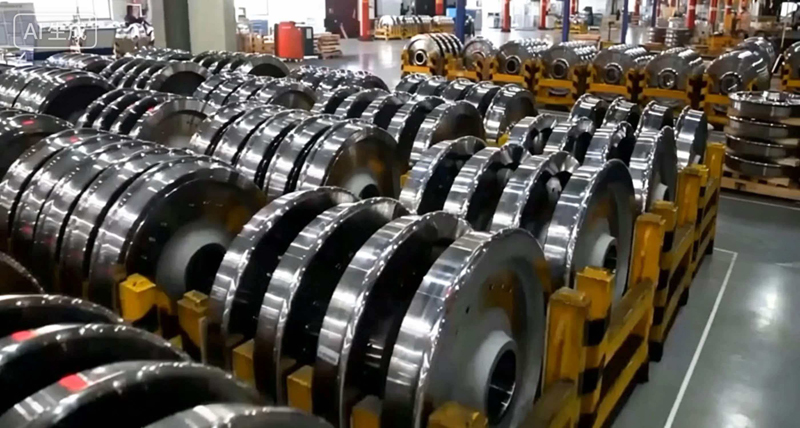

2.1 Rail Car Wheels

Standards: AAR M-107/M-208, EN 13262, BS 5892-3, JIS E5402-2, TB/T 2817

Material: Forged or rolled high-strength carbon steel. Common grades include CL60, R7, ER7, ER8, and AAR Class B/C/D materials. EN 13262:2026 defines five steel grades: ER6, ER7, ER8, ERS8, and ER9. Grade ERS8 is a recent optimization addressing rolling contact fatigue (RCF) based on European service feedback.

Design: The wheel tread features a tapered profile (1:20 slope) that enables self-steering on curves – the same principle that creates hunting motion, which must be managed by suspension design.

Dimensions:

• Diameter: 840–915 mm (new), with a minimum wear limit of 790 mm

• Rim width: typically 130–140 mm

• Flange diameter: approximately 861 mm

Mechanical Properties:

• Tensile strength: 790–980 MPa

• Rim hardness: 246–307 HB

• Impact toughness: ≥12 J at -40°C (per EN 13262)

Manufacturing Features:

• CNC precision machining ensures geometric accuracy and dynamic balance, reducing vibration and noise during operation

• Surface hardening treatment creates a robust protective layer, significantly extending service life

• 100% automated ultrasonic testing (UT) and magnetic particle inspection (MPI) for defect detection

• Low-stress wheel designs (non-straight spoke plates) per AAR S-660 requirements

AAR Wheel Classes: AAR M-107 categorizes wheels into Class L, A, B, C, and D, with Class D offering superior resistance to tread damage.

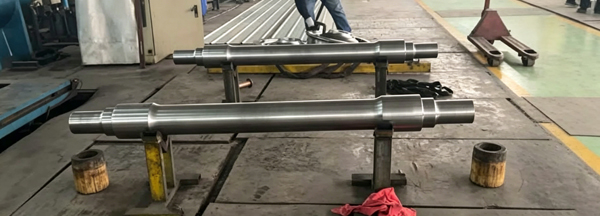

2.2 Railway Axles

Standards: AAR M-101, EN 13261

Types: Solid forged axles (predominantly) or hollow axles (for weight reduction in high-speed applications)

AAR Axle Classes: AAR M-101 covers Class D, E, F, G, and K axles. Key specifications include:

Material: AAR M-101 Grade F (with 0.066% vanadium addition for enhanced fracture toughness)

Fatigue Life: ≥10 million cycles at 150 MPa stress range

Testing Requirements: Chemical composition analysis, tensile strength testing, ultrasonic inspection, magnetic particle inspection, and surface/dimensional verification

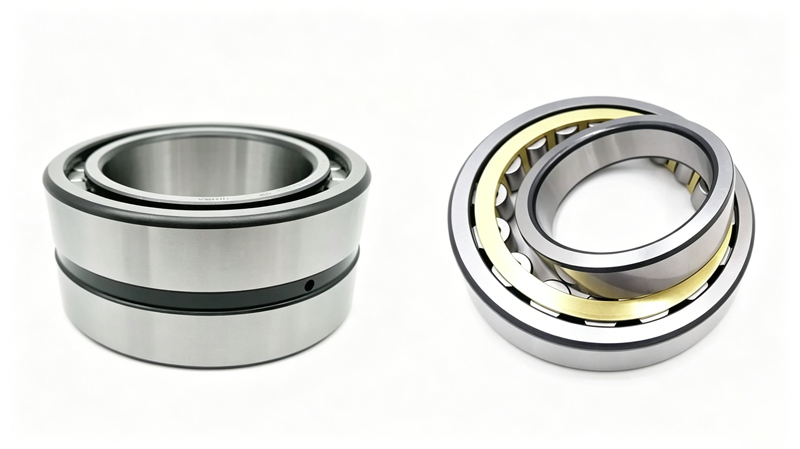

2.3 Bearings

Standards: AAR M-934, TB/T 3017

Type: Tapered roller bearings – the industry standard for freight car applications. Leading manufacturers include Timken (AP-2™ series), SKF, and FAG.

Timken AP-2™ Bearing Features:

• Designed for heavier loads compared to the original AP bearing

• Shorter journal design reduces axle flexure, minimizing fretting wear between bearing components

• Reduces bearing set-outs due to water ingress

• Reduces component wear rejection and axle fillet damage

• Decreases potential axle failure and reduces axle grooving occurrence

Bearing Classes and Capacities:

• Class L (6" × 8"): 70-ton car capacity

• Class K (6½" × 9"): intermediate capacity

• Class M (7" × 9"): 125-ton car capacity

Lubrication: Sealed, grease-packed design with EcoTurn seals (per AAR M-959). Service life: 800,000 km under normal operation.

Failure Prevention: Temperature sensors for hot-box detection (wayside hot bearing detectors)

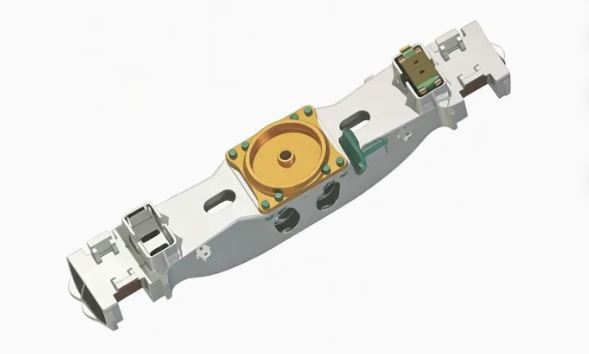

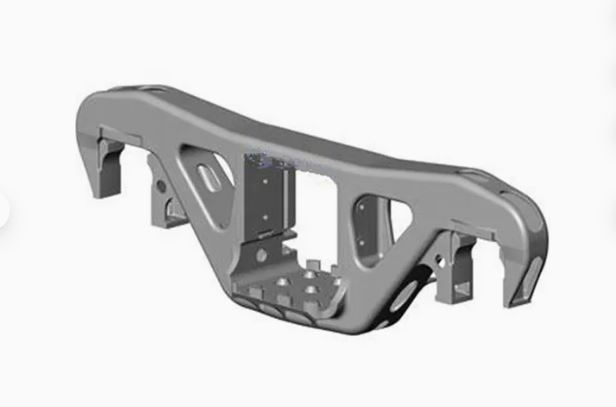

2.4 Side Frames & Bolsters

Standards: AAR M-202 (Truck Bolsters), AAR M-203 (Truck Side Frames), TB/T 3548

Design Types:

1. Three-Piece Bogie (Cast Design) – The dominant configuration in North America, China, and Japan:

• Two cast steel side frames (left and right)

• One cast steel bolster (transverse beam)

• Friction wedges for damping

• Material: Grade B+ cast steel (yield strength ≥345 MPa)

2. Welded Frame Bogie – Increasingly adopted for high-speed and heavy-haul applications:

• Integral welded structure with higher overall stiffness

• Superior diamond resistance compared to three-piece designs

• 2–4 times higher cyclic durability than cast side frames

• Some welded designs demonstrate 10 times longer service life than cast equivalents

• Represented by designs like the ZK3 bogie (21-ton axle load, 120 km/h design speed)

Fatigue Testing: AAR S-660 requires 10⁷ cycles at 2.5× design load

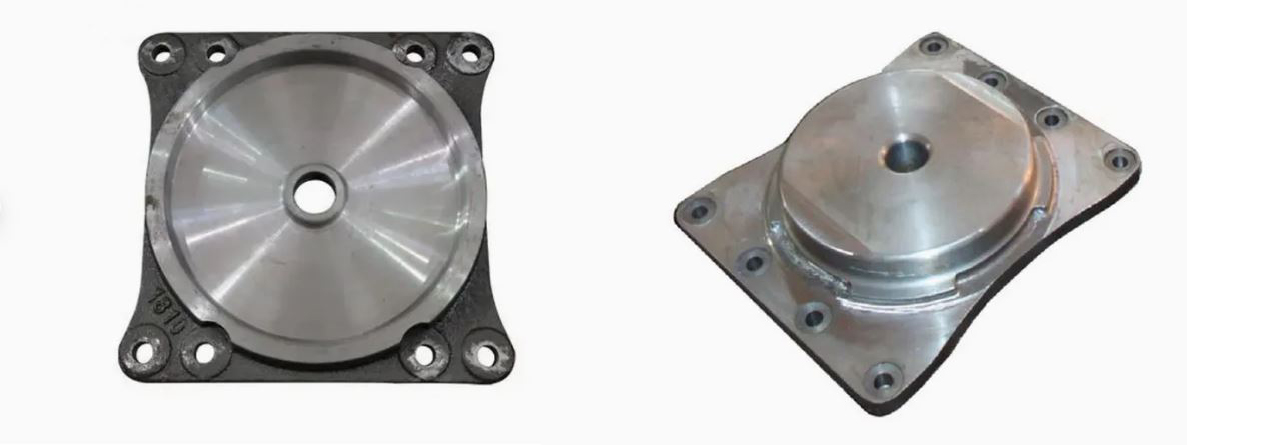

2.5 Center Pivot of freight wagon

Standards: AAR S-659, GB/T 5603

Function: Transfers the wagon body weight to the bolster, providing the primary load path from car body to bogie.

Design: Hardened spherical contact surface (55–60 HRC) for wear resistance and self-aligning capability. The spherical interface allows articulation while maintaining load transfer efficiency.

Maintenance Focus: Regular inspection for wear and lubrication to prevent galling and excessive friction that can impair curving performance.

2.6 Suspension Springs & Damping

Standards: AAR M-901, UIC 515

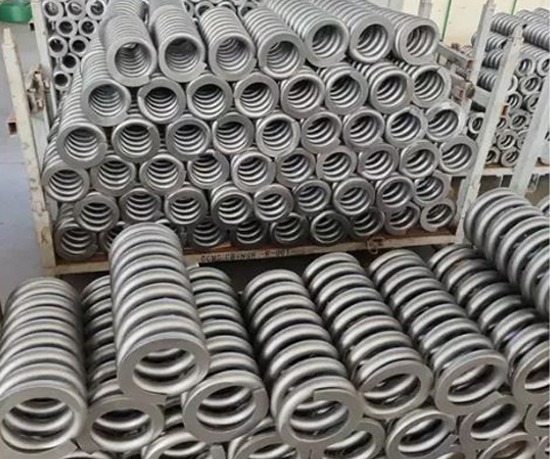

Primary Suspension (Coil Springs):

• Helical steel coil springs mounted between the axlebox and side frame

• Stiffness: typically 3–5 MN/m

• Provide longitudinal and lateral positioning stiffness for the wheelset

• Critical for maintaining hunting stability and ride quality

Secondary Suspension (Friction Wedges / Rubber Pads):

• Friction wedges in three-piece bogies provide variable damping through nonsmooth unilateral contact

• Wedge friction and geometry directly affect hunting stability and critical speed

• Damping ratio: ≥0.15 for lateral stability

Hunting Stability Considerations:

• The critical hunting speed is the threshold below which sustained hunting will not occur

• Factors influencing hunting stability include wheel-rail conicity, suspension parameters, axle distance, and wheelset mass ratio

• Increasing axlebox suspension stiffness and side bearing friction torque can raise the critical hunting speed

• Hunting causes accelerated wear to bogies, track, and lading, and can lead to derailment when combined with track geometry irregularities

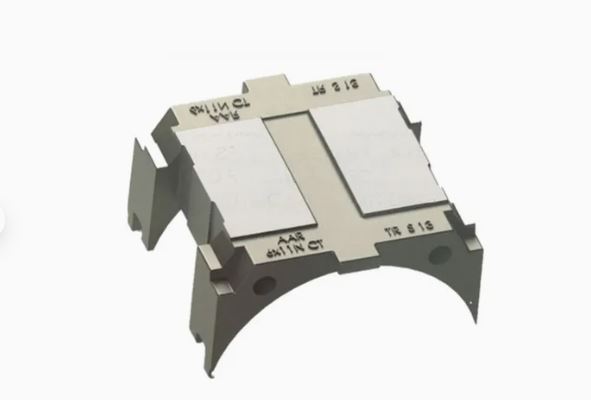

2.7 Adapter

Standards: AAR M-940

Function: Connects the bearing to the side frame with 1° articulation, accommodating the relative motion between the axle and the bogie frame during curving and vertical deflection.

Wear Mitigation: PTFE-coated surfaces reduce fretting wear between the adapter and the side frame pedestal. Regular inspection of coating integrity is essential for maintaining proper load distribution and preventing excessive wear.

3. Performance & Industry Standards

3.1 Load Distribution & Safety

Axle Load:

• Standard freight: 25–32.5 tons per axle

• Heavy-haul operations (e.g., Australian iron ore trains): up to 36 tons per axle

Wheel Unloading Limit: ≤60% of static load (per GB/T 5599) – a critical safety parameter ensuring the wheelset maintains contact with the rail even under dynamic conditions.

AAR S-660 Wheel Impact Test: Historically applied to qualify wheel designs for freight applications. The standard specifies:

• Particular loads for finite element analysis of new wheel designs

• Low-stress wheel designs (non-straight spoke plates) that are significantly more resistant to failure

• PJ Messtechnik GmbH (PJM) is AAR-approved for performing S-660 strength calculations

Car Capacity Examples:

• 70-ton capacity: Class L bearings

• 125-ton capacity: Class M bearings

3.2 Dynamic Behavior

Hunting Stability: Critical speed ≥120 km/h (per UIC 515). This ensures the bogie remains stable under normal freight operating speeds.

Vertical Acceleration: ≤0.7g (per AAR S-580)

Bogie Frame Acceleration: UIC 515-1 specifies limits not exceeding 8–10 m/s² continuously over six instances

Curving Performance: The 1:20 tapered wheel tread enables self-steering through curves, reducing wheel flange wear and derailment risk compared to cylindrical wheel designs.

3.3 Inspection & Maintenance

Wheel Reprofile Interval: Every 500,000 km (per AAR MSRP). Wheels are turned on underfloor wheel lathes to restore the standard tread profile.

Bearing Replacement: 1.2 million km or 10 years (whichever comes first)

NDT Methods:

• Ultrasonic testing (UT) – per EN 1711 for crack detection in wheels and axles

• Magnetic particle inspection (MPI) – for surface and near-surface defect detection

• Liquid penetrant testing – for casting defect inspection

Wear Limits:

• Wheel diameter: minimum 790 mm (from 840–915 mm new)

• Flange thickness: per AAR wheel profile gauging

• Tread hollow wear: monitored via equivalent conicity measurements

Hot-Box Detection: Wayside temperature sensors continuously monitor bearing temperatures to detect incipient failures before they cause derailments.

4. Innovations & Future Trends

4.1 Lightweight Materials

Aluminum alloy bolsters offer 15% weight reduction compared to traditional cast steel designs, improving payload-to-tare ratios and reducing fuel consumption.

High-strength steel grades (e.g., ER8, ERS8) with improved rolling contact fatigue resistance extend wheel life and reduce maintenance frequency.

4.2 Predictive Maintenance & IoT

The freight rail industry is rapidly adopting IoT-enabled bogie monitoring for condition-based maintenance.

Key Technologies:

• Amsted Digital's IQ Series™ gateway – a maintenance-free, low-power telematics device mounted directly on the bogie

• Continuous monitoring of wheelset condition, braking anomalies, load status, and real-time GPS location

• AI-driven predictive maintenance insights to reduce unplanned downtime

• Seamless integration with fleet management systems via ITSS-standard protocols

• Over-the-air upgrades that unlock new features without hardware retrofits

Benefits:

• Proactive wheelset health insights

• Intelligent shock detection for immediate damage awareness

• Maximized wagon availability through smarter maintenance planning

• Optimized maintenance spending through targeted interventions

• Significantly lowered derailment risk

Bogie IQ® technology can also monitor for wheel tread defects and brake slide events. Single bogie-mounted devices are replacing multiple external sensors, reducing environmental impact.

4.3 Energy Harvesting

Regenerative damping systems capture vibration energy from bogie motion to generate onboard power for sensors and telematics devices. Multilayer elastic triboelectric nano-sensors (ME-TENS) can collect vibration energy directly from the bogie.

4.4 Digital Twins

Digital twin technology combined with real-time sensor data enables:

• Anomaly detection through machine learning algorithms

• Remaining useful life (RUL) prediction for critical components

• Virtual simulation of maintenance scenarios before physical intervention

5. Conclusion

The railway freight car bogie is a masterpiece of heavy-duty engineering – a system where every component, from the tapered wheel tread to the friction wedge damper, is precisely designed and manufactured to withstand extreme loads while ensuring safe, stable operation.

Key Takeaways:

• Compliance with AAR, EN, and GB/T standards ensures global interoperability and interchangeability of freight car components

• The three-piece cast bogie remains the dominant design, while welded frame bogies offer superior fatigue life and stiffness for high-speed and heavy-haul applications

• Hunting stability (critical speed ≥120 km/h) is a fundamental design requirement, managed through careful suspension parameter optimization

• Regular maintenance – wheel reprofiling every 500,000 km, bearing replacement at 1.2 million km or 10 years – is essential for safe operation

• IoT-enabled predictive maintenance, digital twins, and energy harvesting represent the future of freight car bogie technology, shifting from scheduled to condition-based maintenance

Whether you're a railway engineer, maintenance professional, fleet manager, or industry supplier, understanding the structure, function, and standards of freight car bogies is essential for ensuring safe, efficient, and sustainable freight rail operations.
