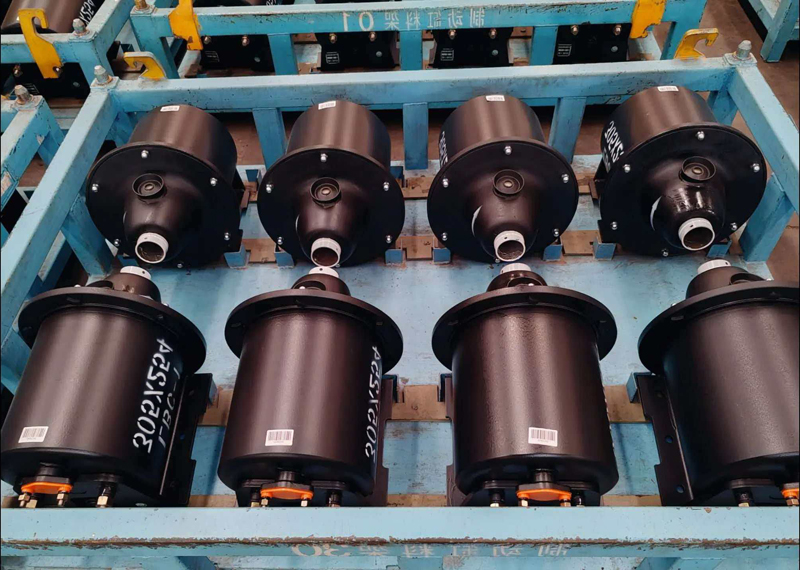

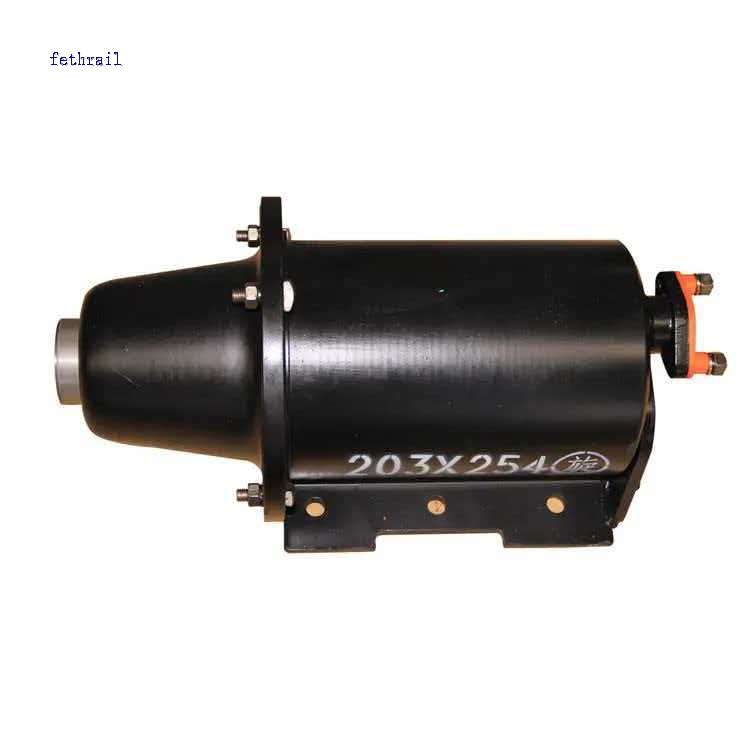

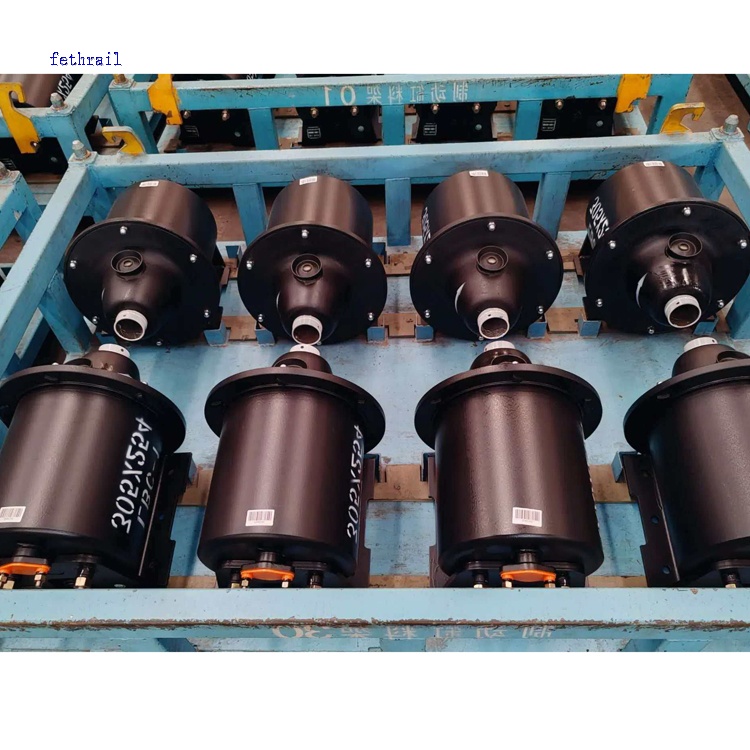

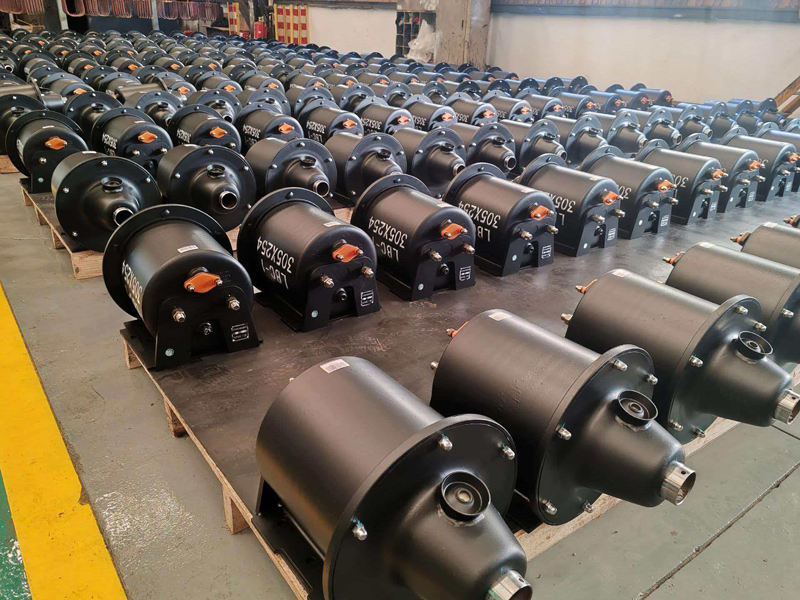

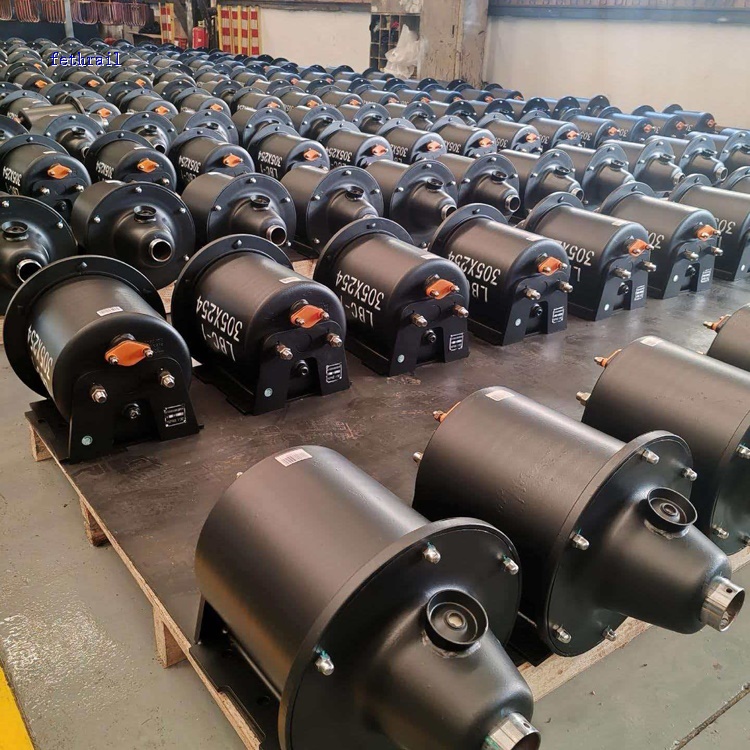

Railway Locomotive & Wagon Air Brake Cylinder (8" / 10" / 12" / 14")

1. Product Overview & Structural Advantages

The air brake cylinder is a critical, safety-imperative component within the railway vehicle braking network, directly determining train deceleration kinetics, stopping distances, and overall operational security. This series of pneumatic brake cylinders is available in standardized inner diameters of 8-inch, 10-inch, 12-inch, and 14-inch, all engineered with a full piston rod stroke of 254 mm (10 inches).

Advanced Spinning Manufacturing Process:

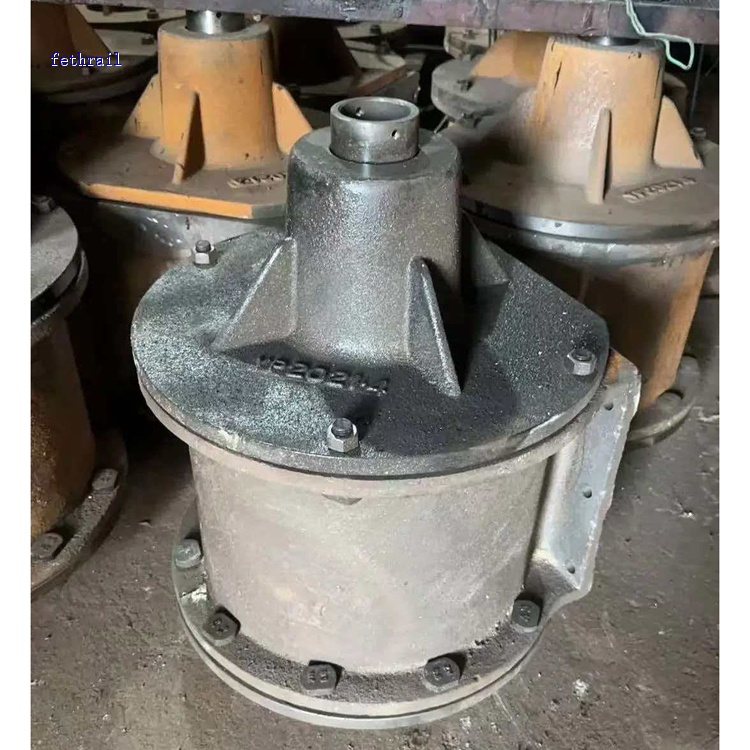

Unlike conventional heavy cast-iron or deep-drawn alternative variants, the main cylinder body is precision-manufactured using high-quality carbon steel through an advanced spinning forming process. This high-tier manufacturing technology reorients and optimizes the metal grain flow structure, enabling significantly thinner yet stronger cylinder walls. The ultimate benefits of this spinning sealed structure include a massive reduction in dead weight, a simplified mechanical envelope, and superior structural fatigue resistance under continuous high-pressure cycles.

Core Sub-Assemblies:

• Cylinder Body: Integrated high-quality carbon steel (Advanced Spinning Formed)

• Piston Seal: High-resilience, anti-wear Y-shape sealing ring

• Guidance: Built-in self-lubricating sleeve for low-friction linear tracking

• Actuation Rod: Heavy-duty, precision-machined steel piston and piston rod

• Return Mechanism: High-fatigue-life mechanical recovery spring

• Protection: Rugged brake cylinder cap assembly accompanied by an integrated front cap air filter mesh to block environmental contaminants.

2. Technical Parameters & Specifications

3. Operational Mechanism & Working Principle

• Brake system application

  When the train's pneumatic braking system commands an application, compressed air is metered into the pressure chamber of the brake cylinder. The air acts directly upon the massive face of the internal piston. The cylinder converts this pneumatic energy into a linear mechanical push force, the magnitude of which is strictly proportional to the real-time air pressure differential and the precise cross-sectional area of the piston. This force is instantly pushed outward through the cylinder piston rod directly into the vehicle's foundation brake rigging device. The rigging device amplifies and splits the force, forcing the brake shoes or brake pads into hard contact with the wheel tread or brake disc, generating the required friction to achieve controlled vehicle deceleration.
