Technical Specification for Railway Bogie Internal & External Compression Springs

• Document No.: KR-BPS-2026-005

• Brand / Trademark: Kingrail Parts

• Country of Origin: China

• HS Code: 8705102300

• Delivery Status: 100% QC Passed / OEM & ODM Customized Supported

1. Overview & Field of Application

This technical specification defines the technical requirements, material standards, manufacturing processes, surface treatments, quality control, and packaging specifications for the internal and external cylindrical helical compression springs used in railway rolling stock bogie suspension systems, manufactured by Kingrail Parts.

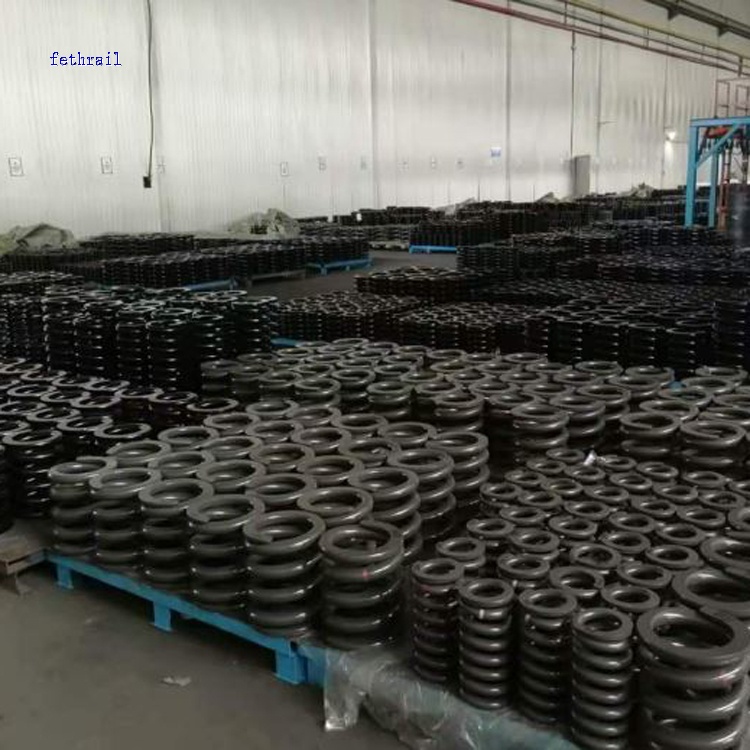

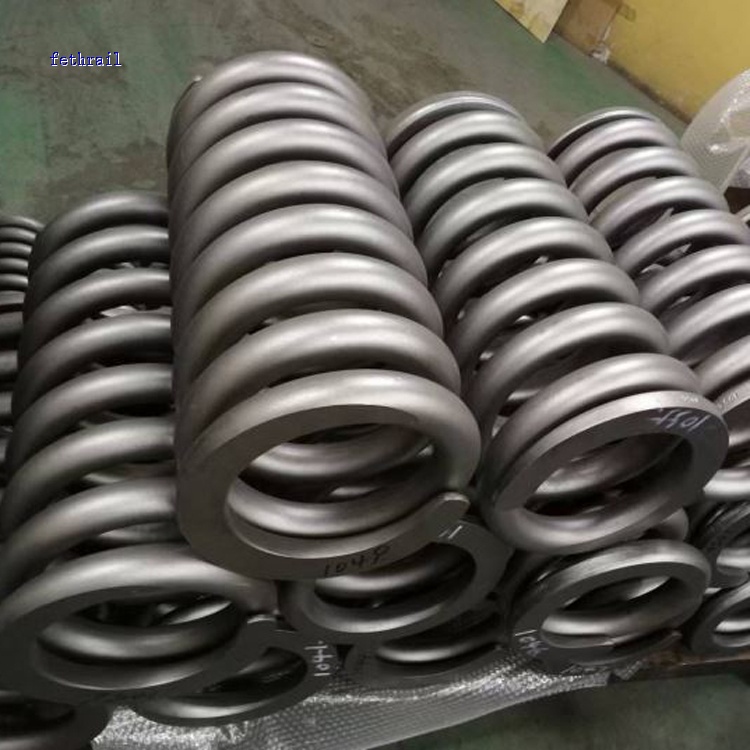

The spring assembly consists of a co-axial nested design comprising an Internal Spring and an External Spring. Serving as the core energy-absorbing and vibration-damping components of the bogie suspension system (primary or secondary suspension), these springs are widely utilized in the bogies of:

• Railway Wagons / Freight Cars

• Passenger Cars

• Locomotives

• Urban Rail Transit and Conventional Trains

1.1 Bogie Compatibility & Axle Load Capacity

Specifically engineered for heavy-haul and standard freight/passenger rail transport, these suspension springs are fully compatible with the following mainstream bogie models:

• Applicable Bogie Types: K2, K4, K8, Y25

• Target Axle Load: 21 Tonnes (21t) / 22 Tonnes (22t)

2. Core Technical Parameters

The following table outlines the physical properties and manufacturing parameters of the bogie spring assembly:

3. Material Standards & Chemical Composition

To ensure an exceptionally high fatigue life, high elastic limit, and minimum permanent set (resistance to sag/relaxation) under harsh and alternating railway dynamic loads, high-grade spring steels or premium music wires are selected:

1. Silicon-Manganese Spring Steel (Si-Mn Series):

   • 60Si2Mn / 60Si2MnA: Offers excellent hardenability, tempering stability, and low decarburization tendency. This is the benchmark material for standard bogie springs.

2. Chrome-Vanadium Micro-Alloyed High-Strength Steel (Cr-V / Cr-V-A Series):

   • 60Si2CrVA / 60Si2CrVAt: Infused with micro-alloying elements to significantly optimize the yield-to-tensile ratio. It delivers superior fatigue strength and toughness, ideal for extreme cold environments or heavy-haul lines with high impact loads.

   • 50CrV4: High-purity chrome-vanadium spring steel complying with European EN 10089 standards, providing extreme hardenability and reliability.

3. Specialized High-Precision Materials:

   • Music Steel Spring Steel: Applied in specific stiffness tuning within internal suspensions or smaller auxiliary damping units.

4. International Standards & Certifications

The R&D, raw material procurement, manufacturing processes, and final inspections of Kingrail Parts strictly adhere to leading global railway standards and industry quality certifications:

4.1 Quality Management & Factory Approvals

• ISO 9001 — Quality Management System Certification

• ISO/TS 16949 — Quality Management Standard for Automotive and Heavy Machinery Components

• ISO 14001 — Environmental Management System Certification

• OHSAS 18001 — Occupational Health and Safety Management System

• Tsi — Technical Specifications for Interoperability (European Rail Access Approval)

• AAR — Association of American Railroads Facility Certification

4.2 Applicable Global Railway Standards

Product design, manufacturing tolerances, and testing methodologies are fully aligned with:

• AAR (USA) — Association of American Railroads Specifications for Freight Car Suspension

• UIC / EN (Europe) — Including EN 13298 (Railway applications - Suspension components - Helical compression springs)

• GOST (CIS / Russia) — Technical Conditions for Broad-Gauge Railway Rolling Stock Springs

• IRIS — International Railway Industry Standard

• TB (China) — National Railway Industry Standards of P.R.C.

• JIS (Japan) | BS (UK) | KSR (South Korea) Relevant rolling stock spring codes

5. Surface Treatments & Advanced Corrosion Protection

Railway bogie springs operate continuously in aggressive outdoor environments, facing constant exposure to salt spray, humidity, acid rain, and ballast impacts. To completely prevent stress corrosion cracking (SCC) and premature fatigue failure, the following high-performance coatings are available:

1. Chemical Conversion Coating:

   • Oxide Black: Formats a dense, protective magnetite layer providing baseline rust prevention and a non-glare, professional finish.

2. Electroplating Protective Layers:

   • Zinc, Chrome, Nickel, or Tin Plating: Delivers sacrificial galvanic protection or high-hardness wear resistance.

3. Advanced Powder Coating:

   • Epoxy/Polyester Powder Coating: Applied via high-voltage electrostatic spraying and thermal curing. This yields a highly flexible, durable layer with extraordinary resistance to stone chipping, chemical acids/alkalis, and UV degradation.

6. Quality Control & Inspection Procedures

We adhere rigidly to the principle of 100% QC Passed. Every production batch undergoes a comprehensive closed-loop inspection regime:

• Raw Material Traceability: Every batch of steel is accompanied by an original Mill Test Certificate (MTC). Spectral chemical analysis, end-quench hardenability testing, and non-metallic inclusion rating are conducted prior to production.

• Geometric & Dimensional Verification: Strict verification of free height ($H_0$), outside diameter ($D_o$), inside diameter ($D_i$), active/total coils, total squareness (perpendicularity), and parallelism.

• Mechanical & Load Testing:

  • Measurement of Spring Rate (stiffness) to ensure compliance within specified tolerance bands.

  • Load verification under designated working/solid heights.

  • Permanent set testing after repeated compression to ensure excellent anti-creep properties.

• Non-Destructive Testing (NDT): 100% Magnetic Particle Inspection (MPI) or Ultrasonic Testing is enforced to ensure absolute freedom from surface cracks, seams, laps, or drawing marks.

• Metallurgical & Decarburization Control: Microstructural analysis (ensuring a tempered martensite structure) and total/partial decarburization depth evaluation to ensure values remain well below international code thresholds.

• Surface Enhancement: 100% Shot Peening is executed to introduce deep compressive residual stresses, exponentially multiplying the alternating fatigue life of the springs.

7. Packaging, Shipping, and Logistics

• OEM & ODM Service: Engineering customization is available to finely match the spring rate, clearance, and damping properties with the specific bogie assembly requirements.

• Rust Prevention: Following final testing, all springs are coated with high-grade anti-rust oils or peelable protective plastics, followed by an initial wrap of moisture-proof plastic film.

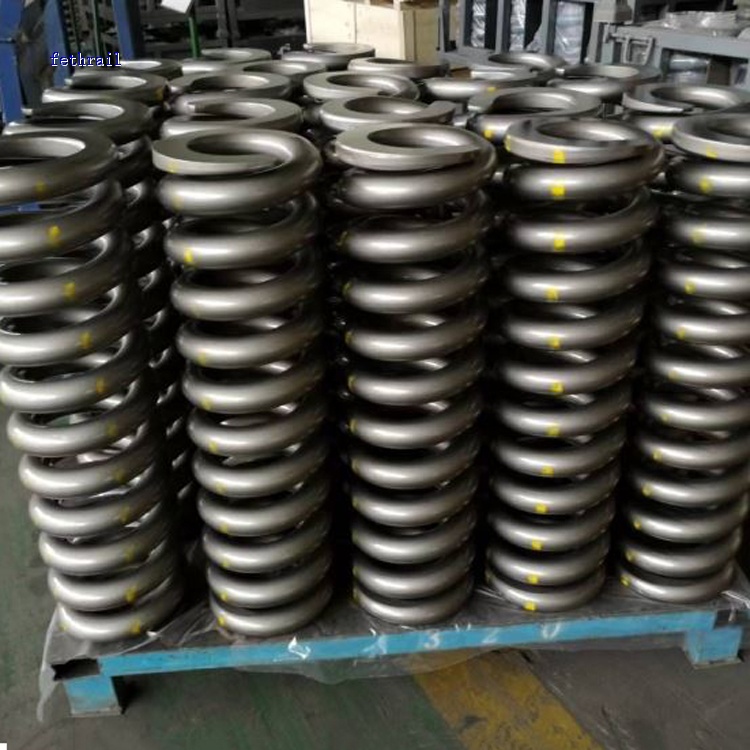

• Transport Package: Securely anchored inside heavy-duty Wooden Boxes or onto Wooden Pallets equipped with internal shock-absorbing dividers. This guarantees maximum protection against structural impact, vibration, and moisture during long-distance intermodal ocean or land freight.
