AAR Railway Coupler for mining

Engineered for heavy-duty industrial and mining applications, our AAR Type 10/A Automatic Coupler offers a robust, reliable, and safe connection solution for narrow-gauge rolling stock. Designed with high-precision cast steel, it ensures maximum durability under high-impact conditions.

Key Features:

• Automatic Locking: Increases operational efficiency and personnel safety.

• Heavy-Duty Casting: Manufactured from premium cast steel for superior tensile strength and wear resistance.

• Versatile Mounting: Equipped with a standard 4-bolt mounting flange for easy installation on various chassis types.

• Wide-Angle Swing: Designed to handle sharp curves and uneven track conditions common in mining and tunneling operations.

Applications: Underground Mining Wagons

• Steel Plant Slag Cars and Ladle Cars

• Tunneling Construction Trains

• Narrow Gauge Industrial Locomotives

Technical Specifications & Features

Item	Description
Product Name	AAR Type 10/A Automatic Coupler (Small Pattern, Narrow‑Gauge)
Design Standard	Based on AAR (Association of American Railroads) principles, scaled for industrial/narrow‑gauge use
Primary Applications	Heavy‑duty industrial, mining, and tunneling environments with narrow‑gauge rolling stock
Material	High‑strength Grade C or Grade E cast steel (quenched and tempered)
Core Advantages	Robust, reliable, automatic locking, impact‑resistant, wear‑resistant, easy to install
Automatic Locking Mechanism	Locks upon impact, improving operational efficiency and personnel safety
Casting Process	Precision cast steel with superior tensile strength and wear resistance for high‑impact conditions
Mounting Method	Standard 4‑bolt mounting flange for easy adaptation to various chassis types
Swing Angle	Wide‑angle design to handle sharp curves and uneven track conditions common in mining and tunneling

1. Product Classification

• Standard: Based on AAR (Association of American Railroads) design principles but scaled down for industrial use.

• Model: Commonly referred to as the 10/A Automatic Coupler (Small Pattern).

• Material: High-strength Grade C or Grade E Cast Steel (Quenched and Tempered).

2. Key Components & Mechanism

• Coupler Head: The "knuckle" design allows for automatic coupling upon impact.

• Knuckle : The pivoting part that locks the connection.

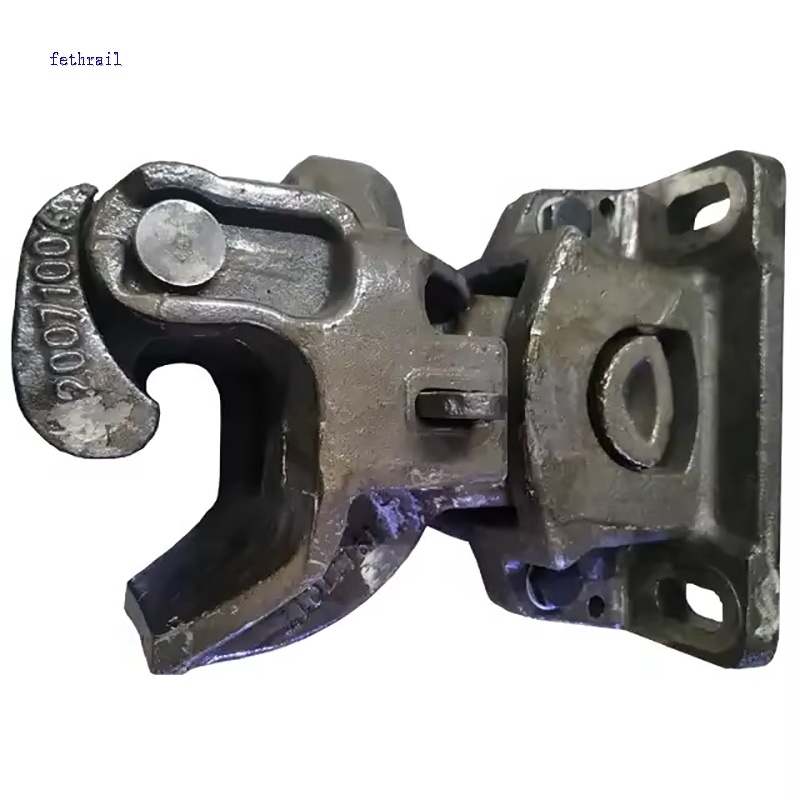

• Knuckle Pin : The vertical axis (visible in your first photo) that allows the knuckle to rotate.

• Locking Block : An internal gravity-fed or spring-loaded mechanism that prevents the knuckle from opening during transit.

• Shank & Yoke : The rear part of the coupler that handles the draft (pulling) and buff (pushing) forces.

3. Functional Advantages

• Automatic Coupling: Enables "hands-free" connection between wagons, significantly increasing safety in mining and factory environments.

• High Articulation: The rear mounting flange and pivot pin allow for horizontal and vertical angling, which is critical for navigating tight curves in underground mines or industrial plants.

• Standardized Compatibility: As an AAR-pattern device, it can usually couple with other AAR-style couplers of the same size, regardless of the manufacturer.
