  • Railway Train Forged Monoblock for freight Wagon and railcar
  • Railway Train Forged Monoblock for freight Wagon and railcar
  • Railway Train Forged Monoblock for freight Wagon and railcar
Railway Train Forged Monoblock for freight Wagon and railcar Railway Train Forged Monoblock for freight Wagon and railcar Railway Train Forged Monoblock for freight Wagon and railcar

Railway Train Forged Monoblock for freight Wagon and railcar

  • Product No.:202538171912
  • Price:negotiation
  • Material:high-quality carbon steel
  • Standard:AAR
  • mould charge:yes
  • Production time:60days
  • weight:about 700kgs
  • Package:Pallent
  • Online Inquiry

Product Overview

1. Typewheel set
3. MaterialAR M-201 Grade E Steel
5. Dimensions (L x W x H) (mm). diameter 650-2000mm
7. Product nameRailway Vehicles
9. CertificateISO 9001/ CRCC / TSI
11. StyleColor: as per client request
13. AccessoriesRailway Vehicles
15. MOQ2 Set

Materials & Manufacturing Railway wheelsets have two manufacutre Cast Steel Wheels and Forged Railway Wheels, it is the forged and precision-engineered comprising with High-Tensile and strength alloy steel axles and premium forged/rolled steel wheels.

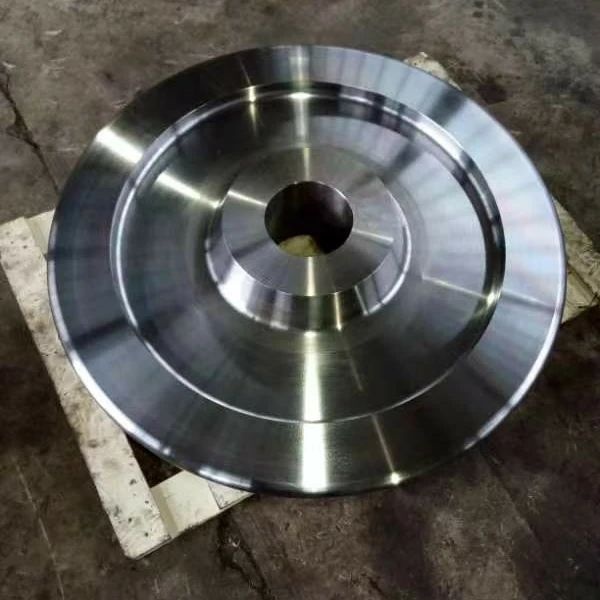

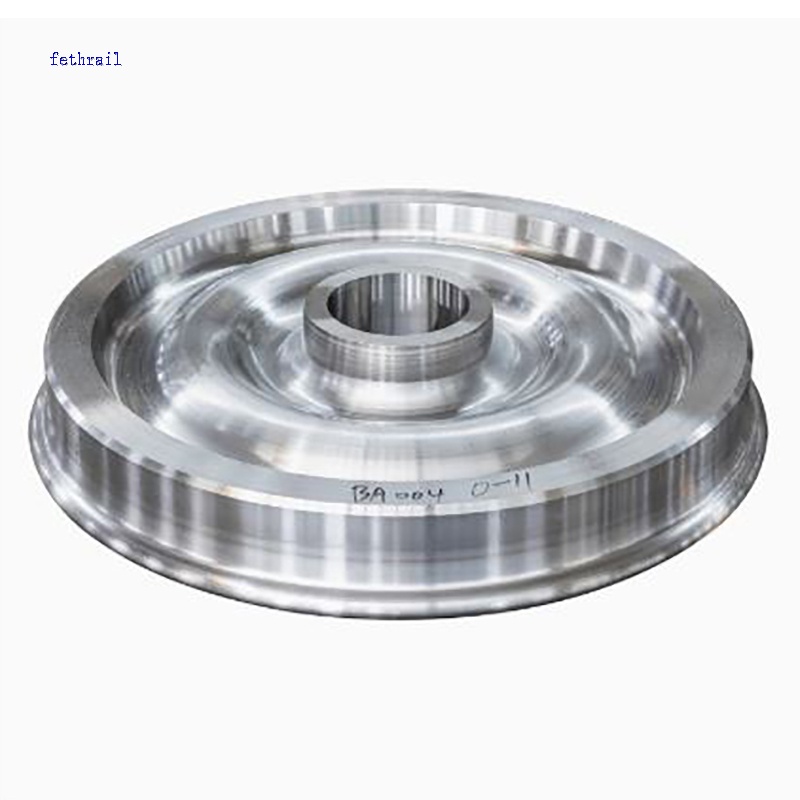

Railway Train Forged Monoblock for freight Wagon and railcar, AAR compliantRailway Train Forged Monoblock for freight Wagon and railcar, AAR compliant - view 2Railway Train Forged Monoblock for freight Wagon and railcar, AAR compliant - view 3

Railway Train Forged Monoblock for freight Wagon and railcar - supplied by Suzhou Guanyi Machinery

Wheels: Manufactured from grades like AAR-B, ER7, or CL65/CL70 steel using integral forging and vacuum degassing to ensure density and defect reduction.

Axles: Made from alloy steels (e.g., 40Cr, 50Cr) or stainless steels (304L/316L), offering fatigue resistance and corrosion stability.

Assembly: Hydraulic press-fitting with interference fit, followed by ultrasonic testing to guarantee zero-defect alignment.

Mechanical Properties

CategorySpecifications
Wheel Hardness280-320 HB (surface-hardened via heat treatment)14
Axle StrengthTensile strength ≥ 700 MPa, impact resistance ≥ 40 J/cm²45
Load CapacityUp to 50 tons (optimized for high-speed/heavy-haul operations)34

Quality Standards

Complies with ISO/UIC /AAR M-107/M-208 Standardstandards for railway components

Adheres to BS 5892-6:1992 for wheelset assembly and dimensional tolerances

Validated through salt spray, fatigue, and extreme temperature tests

Key Features

1. Durability: Specialized hardening processes on wheel treads reduce wear and extend maintenance cycles.

2. Dynamic Stability: Precision-machined profiles minimize wheel-rail noise and vibration.

3. Corrosion Resistance: Axle materials and coatings ensure reliability in harsh environments.

Applications: Designed for freight locomotives, high-speed trains, and urban rail systems, balancing safety and operational efficiency.

Railway Train Forged Monoblock for freight Wagon and railcar As a core load-bearing component of rail transit vehicles, wheelset is a crucial part of the train bogie system, directly related to the train's operational safety, stability and service life. This product adopts advanced materials science and manufacturing processes, dedicated to providing high-performance and highly reliable wheelset solutions for modern railway transportation.
