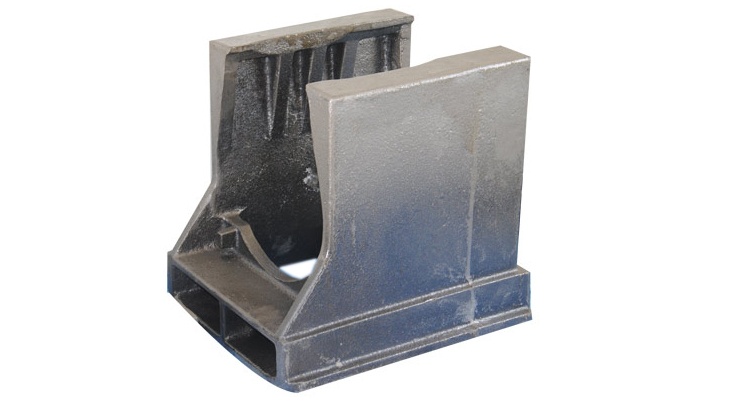

AAR Standard Railway Coupler Strikers

The Railway Coupler Striker is a primary structural component located at the end of the railcar's draft sill. It serves as a guide and support for the coupler shank and acts as a definitive "stop" for the coupler horn during extreme buff (compression) forces, preventing damage to the draft gear and the car body.

1. Material & Manufacturing Standards

• Steel Grade: Primarily manufactured from AAR Grade B+ or Grade C cast steel (compliant with AAR M-201).

• Manufacturing Process: Vacuum-degassed casting to ensure a dense internal structure, followed by normalization to achieve high impact toughness at low temperatures.

• Wear Protection: Most strikers are equipped with Hardened Wear Plates (usually Manganese Steel) on the carrier surface to reduce friction and wear between the striker and the coupler shank.

2. Core Models and Coupler Compatibility

Striker designs vary based on the type of coupler they support and the design of the wagon's end-of-car cushioning. Below are the standard configurations:

A. Standard Type E Coupler Striker (S-915 Series)

• Matching Coupler: AAR Type E Couplers (e.g., E60, SBE60).

• Design Feature: Features a rectangular opening with a Coupler Carrier at the bottom. This design allows for the lateral swing of the E-type shank.

• Application: The most common striker found on standard freight wagons, hoppers, and gondolas globally.

B. Type F Coupler Striker (Interlocking)

• Matching Coupler: AAR Type F Couplers (e.g., F70, SF70).

• Design Feature: Since Type F couplers have a spherical butt and an interlocking feature, the striker opening is typically larger or shaped differently to accommodate the F-type's unique vertical and lateral movement range.

• Application: Heavy-haul mining wagons and tank cars where high safety and anti-climbing features are required.

C. Striker for E/F Hybrid Systems

• Matching Coupler: AAR Type E/F Couplers.

• Design Feature: These strikers are versatile units designed to bridge the gap between standard freight car frames and high-tensile interlocking requirements.

D. Integrated Draft Sill Strikers

• Design Feature: Rather than being a separate casting, the striker is cast as an integral part of the Draft Sill (Center Sill) end. This reduces welding requirements and increases structural rigidity for extreme heavy-haul operations.

3. Key Performance Features

• Impact Resilience: Engineered to withstand repeated "horn strikes" (striking of the coupler head against the striker face) during emergency braking or shunting without cracking.

• Support for Coupler Carrier: Provides a stable platform for the Coupler Carrier Wear Plate, which bears the weight of the coupler and ensures smooth lateral movement.

• Precision Fit: All mounting surfaces are cleaned and gauged to ensure a perfect weld-ready fit with the Center Sill.

4. Maintenance & Wear Limits

1. Wear Plate Inspection: The horizontal wear plate (Carrier Plate) should be inspected regularly. If worn beyond 3mm (1/8 inch), it should be replaced to maintain the correct coupler height.

2. Crack Detection: During major overhauls, the striker throat and mounting welds must undergo Magnetic Particle Inspection (MPI) to check for fatigue cracks caused by heavy buff impacts.

3. Striker Face Wear: If the vertical face of the striker is severely deformed or worn, it can lead to "excessive slack" in the draft system, requiring the addition of a Striker Face Wear Plate or replacement of the casting.
