Heavy-Duty Railway Coupler Striker Assemblies

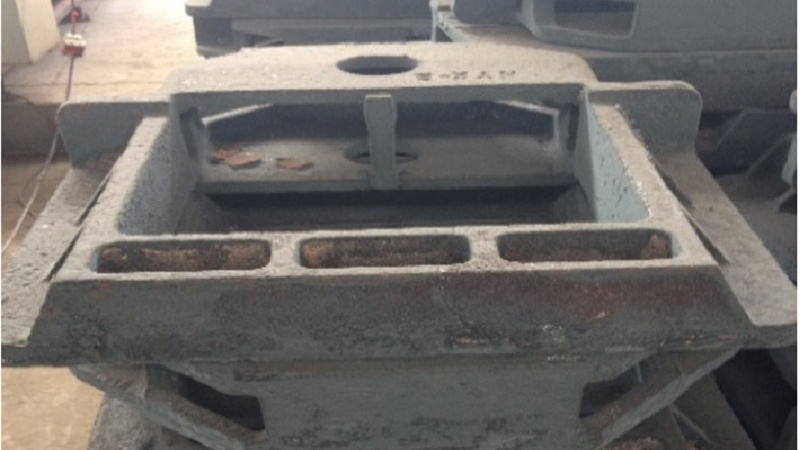

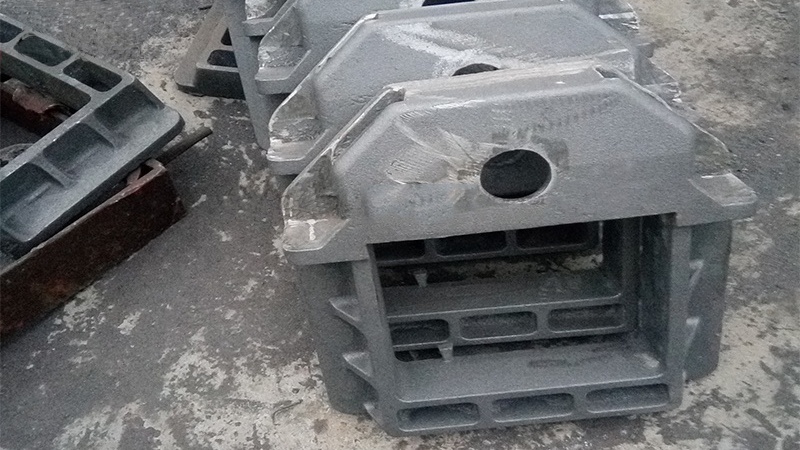

The Railway Coupler Striker is a critical structural element welded to the outboard end of a wagon's center sill. Acting as both a guide and a protective barrier, the striker assembly is designed to manage the lateral and longitudinal forces exerted by the coupler, ensuring the structural integrity of the railcar underframe during high-impact shunting and heavy-haul operations.

1. Advanced Material Properties & Durability

Our striker castings are engineered to endure the harshest railway environments:

• High-Integrity Cast Steel: Produced using AAR Grade B+ or Grade C steel (AAR M-201), providing a high strength-to-weight ratio and excellent weldability.

• Micro-Alloyed Toughness: The material undergoes normalized heat treatment to enhance fracture toughness, specifically designed to prevent brittle failure in extreme cold-weather operations (down to -40°C).

• Precision Geometry: Each casting is verified using master gauges to ensure a seamless interface with the draft sill and the coupler horn.

2. Striker Classifications & System Compatibility

The geometry of the striker is precisely matched to the specific coupler and car-end configuration:

Standard E-Type Striker (S-915 Compliant)

• Application: Optimized for AAR Type E Couplers (such as E60 and SBE60).

• Function: Provides a controlled rectangular pocket that allows for the standard lateral swing required for freight wagons on curved tracks.

• Support: Incorporates a robust Coupler Carrier base to maintain the correct horizontal alignment of the coupler shank.

High-Performance F-Type Interlocking Striker

• Application: Designed for AAR Type F Couplers used in heavy mining or hazardous material transport.

• Function: Features a specialized throat design to accommodate the unique spherical butt and vertical interlocking movement of F-type systems.

• Security: Provides superior anti-climbing protection during derailments or heavy collisions.

Integral Sill Strikers

• Design: A unified casting that combines the striker and the center sill end.

• Advantage: Eliminates critical weld seams, reducing the risk of fatigue cracking in ultra-heavy-haul mining environments.

3. Structural Protection & Impact Management

• Horn Strike Absorption: The vertical face of the striker serves as a mechanical stop for the coupler horn. This prevents over-travel of the draft gear, shielding the internal cushioning unit from destructive bottoming-out forces.

• Carrier Wear Protection: Every striker is designed for the easy installation of Manganese Steel Wear Plates. These hardened plates bear the friction of the moving coupler shank, extending the service life of the main casting.

• Stress Distribution: The tapered wing design of the striker effectively distributes longitudinal buff forces into the side sills and center sill of the wagon.

4. Maintenance & Quality Assurance

To ensure long-term operational safety, we implement the following quality protocols:

• NDT Verification: 100% Magnetic Particle Inspection (MPI) and Ultrasonic Testing (UT) are available to ensure zero internal porosity in high-stress zones.

• Wear Monitoring: Serviceable components, such as the Coupler Carrier Wear Plate, are designed for rapid replacement, minimizing locomotive downtime.

• Dimensional Accuracy: Tight tolerances on the mounting flanges ensure a high-quality weld joint with the car body, reducing the likelihood of weld-seam failure.
