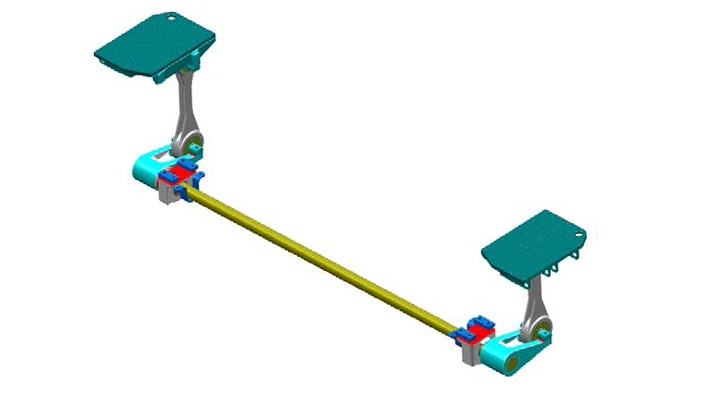

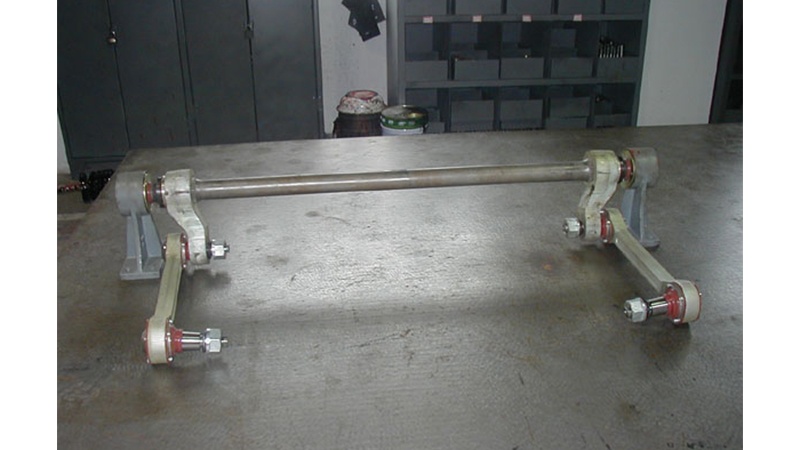

Technical Specification: High-Precision Railcar Track Control Arms

The Railcar Track Control Arm (also known as a Bogie Guide Arm or Pedestal Control Arm) is a critical safety component within the primary suspension system. Its principal function is to provide longitudinal and lateral constraint for the wheelset while allowing vertical movement. By maintaining precise axle alignment, the control arm ensures stable high-speed running and reduces the wear and tear on both wheel flanges and rail tracks.

1. Advanced Manufacturing & Metallurgy

To meet the rigorous demands of heavy-haul freight and high-speed passenger rail, our control arms are manufactured using state-of-the-art processes:

• High-Strength Forging: Produced from premium alloy steel through a closed-die hot forging process. This ensures an optimal internal grain flow, significantly increasing the fatigue limit compared to cast alternatives.

• Precision CNC Machining: All connection points and bushing seats are CNC-machined to micron-level tolerances, ensuring a perfect press-fit for elastic components.

• Surface Protection: Finished with high-performance anti-corrosion coatings (e.g., zinc-rich or epoxy primers) to withstand harsh environmental conditions and ballast impact.

2. Key Design Features & Benefits

• Integrated Elastic Bushings: Our control arms are typically equipped with high-durability rubber-metal bushings. These elements provide the necessary stiffness for track tracking while dampening high-frequency vibrations.

• Wheelset Guidance: Specifically engineered to optimize the "steering" effect of the bogie, reducing lateral forces during curve negotiation and preventing "hunting" oscillations at high speeds.

• Lightweight Optimization: Using Finite Element Analysis (FEA), the arm’s geometry is optimized to minimize unsprung mass, which lowers the dynamic impact on the track and reduces energy consumption.

3. Application Standards & Compatibility

Our track control arms are designed to integrate seamlessly with global bogie architectures:

• European Standards: Optimized for Y25, Y32, and UIC-compliant bogie systems.

• North American Standards: Compatible with heavy-haul Three-Piece Bogies and specialized intermodal car suspensions.

• Custom Engineering: We offer bespoke designs tailored to specific axle loads, track gauges, and operating speeds (from 80 km/h freight to 250+ km/h passenger rail).

4. Quality Control & Safety Testing

Safety is non-negotiable in railway suspension. Every batch undergoes rigorous verification:

• Non-Destructive Testing (NDT): 100% Magnetic Particle Inspection (MPI) and Ultrasonic Testing (UT) to ensure the absence of internal voids or surface cracks.

• Fatigue Testing: Laboratory simulated life-cycle testing exceeding 10 million cycles to ensure long-term structural integrity.

• Hardness & Tensile Verification: Ensuring the material meets the strict yield and tensile requirements of international rail codes.

5. Maintenance & Lifecycle Management

• Serviceability: Designed for rapid "drop-in" replacement during scheduled overhauls, minimizing locomotive and wagon downtime.

• Bushing Replacement: The arm is engineered to allow for multiple bushing press-out/press-in cycles without compromising the integrity of the housing.

• Operational Monitoring: Recommended inspection intervals align with standard bogie maintenance schedules to monitor for bushing degradation or mechanical damage.
