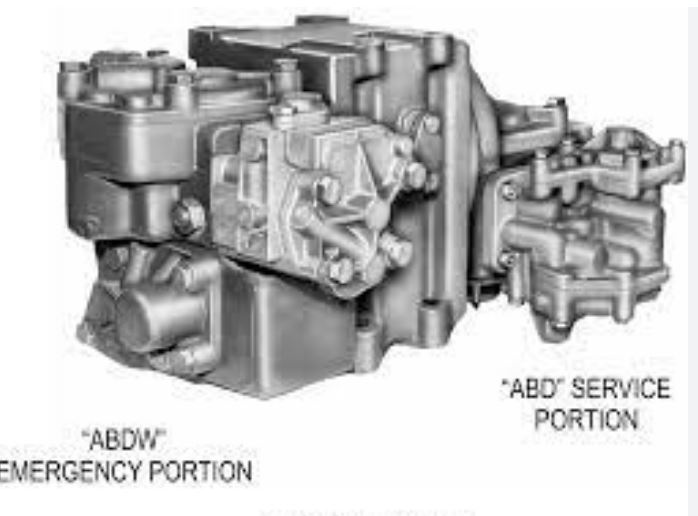

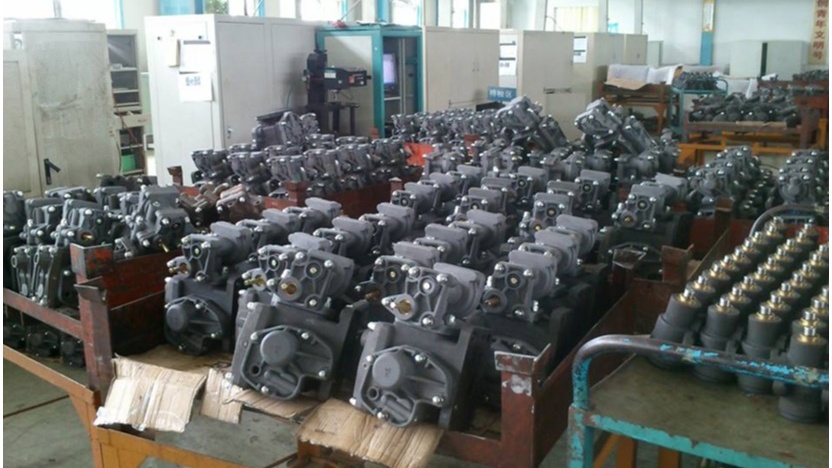

UIC & AAR Standard Railway Air Brake Control Valves for Freight wagon

Product No.：202382321234
Material：high-quality carbon steel
Standard：AAR
mould charge：yes
Production time：60
weight：68kgs
Package：Wood Box
Online Inquiry

Advanced Railway Air Control Valve Systems

1. SEO Metadata Summary

Target URL: /products/railway-air-control-valve-technical-specifications
SEO Title: Railway Air Control Valve | Technical Specifications & Braking Standards
Meta Description: An in-depth technical guide to Railway Air Control Valves. Explore working principles, UIC/AAR compliance, and performance metrics for locomotive pneumatic braking systems.
Primary Keywords: Railway Air Control Valve, Train Braking Distributor, Pneumatic Brake Control, UIC 541-1 Standard, Triple Valve Technology.

2. Product Overview

The Railway Air Control Valve (commonly referred to as the Distributor Valve or Triple Valve) acts as the intelligence center of a train's pneumatic braking system. Its primary role is to interpret pressure signals from the Brake Pipe (BP) and precisely regulate the airflow between the Auxiliary Reservoir (AR) and the Brake Cylinder (BC).

Our control valves are engineered for high-frequency operation and extreme environmental resilience, ensuring safety for heavy-haul freight and high-speed passenger rail.

3. Technical Specifications & Performance Data

Providing structured data in tables helps search engines feature your content in "Rich Snippets."

Feature	Specification	Standard Compliance
Operating Pressure	$5.0 - 6.0 \text{ bar}$ (Standard)	UIC 540 / AAR S-401
Sensitivity	Response within $\Delta P \le 0.3 \text{ bar}$	UIC 541-1
Temperature Range	$-40\text{°C}$ to $+70\text{°C}$	IEC 60068-2
Material Composition	Ductile Iron GGG40 / Aluminum Alloy	ASTM A536
Inshot Pressure	$0.8 \pm 0.2 \text{ bar}$	Industry Standard

4. Key Working Principles

To rank for "How does a railway air control valve work?", we break down the three primary phases:

4.1 Charging and Release Phase

When the Brake Pipe pressure is at its maximum ( $5 \text{ bar}$ ), the valve moves to the release position. It vents the Brake Cylinder to the atmosphere while simultaneously recharging the Auxiliary Reservoir.

4.2 Application Phase

A reduction in Brake Pipe pressure creates a pressure differential. The control valve detects this drop and directs compressed air from the Auxiliary Reservoir into the Brake Cylinder. The braking force is proportional to the pressure reduction:

P_{BC} = (P_{BP\_Initial} - P_{BP\_Reduced}) \times \text{Ratio}

4.3 Lap Position (Pressure Maintaining)

Once the desired braking force is achieved, the valve enters the "Lap" state, sealing all ports to maintain constant pressure in the Brake Cylinder regardless of minor system leaks.

5. Industrial Applications

Our Air Control Valves are versatile and compatible with various rolling stock configurations:

Freight Wagons: Optimized for long-consist braking synchronization.
Locomotives: High-flow capacity for rapid response.
Passenger Coaches: Specialized for smooth, jerk-free deceleration.
Transit/Metro: Compact designs for limited-space undercarriages.

6. Maintenance and Quality Assurance

Safety is non-negotiable in railway operations. Our valves undergo rigorous testing protocols:

Vibration & Shock Testing: Certified to EN 61373 for trackside equipment.
Endurance Testing: Validated for over 1 million cycles without failure.
Modular Serviceability: Designed for easy replacement of rubber diaphragms and O-rings, significantly lowering the Total Cost of Ownership (TCO).
