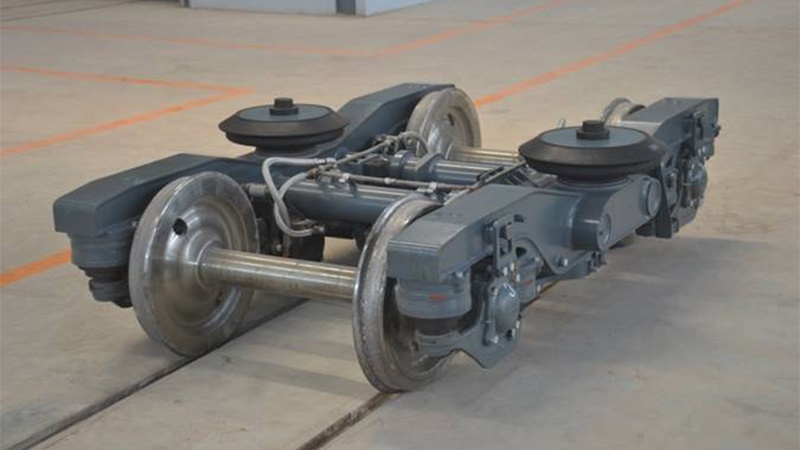

The Passenger Car Bogie is the most complex sub-system of rolling stock, serving as the interface between the track and the vehicle body. Unlike freight bogies, passenger bogies are primarily engineered for Ride Quality, Noise Abatement, and High-Speed Stability.

Our bogies utilize a bolsterless design (or swing-bolster depending on application) to minimize weight while maximizing the lateral and vertical damping required for passenger comfort at speeds exceeding $200\text{ km/h}$.

3. Technical Specifications & Performance Matrix

Structured technical data for search engine "Rich Snippet" optimization:

4. Advanced Suspension Dynamics

4.1 Secondary Air Suspension Technology

To maintain a constant floor height regardless of passenger load, our bogies feature an integrated Levelling Valve System within the secondary air springs. This system provides superior vibration isolation, maintaining the natural frequency of the vehicle body within the "comfort zone" of $1.0 - 1.2\text{ Hz}$.

4.2 NVH (Noise, Vibration, Harshness) Mitigation

The transmission of wheel-rail noise is mitigated through the use of Elastic Metal-Rubber Bushings at all articulated joints. The damping coefficient is calculated to suppress high-frequency resonance:

5. Key Engineering Features

5.1 High-Speed Stability & Anti-Hunting

To prevent "Hunting Oscillation" at high velocities, our passenger bogies are equipped with Yaw Dampers (anti-hunting dampers). These stabilize the bogie's sinusoidal motion, ensuring safety and preventing wheel-flange wear during high-speed tangent track running.

5.2 Lightweight Frame Design

Using Finite Element Analysis (FEA), the bogie frame is optimized to reduce unsprung mass. High-strength structural steel (e.g., S355J2W) is utilized to ensure a service life of 30+ years while minimizing energy consumption for the operator.

5.3 Integrated Braking & Monitoring

• Disc Braking: High-thermal-capacity ventilated discs for emergency deceleration.

• WSP (Wheel Slide Protection): Integrated sensors to prevent wheel flats during low-adhesion conditions.

• Health Monitoring: Optional sensors for real-time vibration and temperature tracking of the Railway Axle and bearings.

6. Safety Validation & Certification

Our passenger bogies undergo rigorous multi-stage testing to ensure 100% reliability:

1. Static & Fatigue Frame Testing: In accordance with EN 13749, simulating millions of load cycles.

2. On-Track Dynamic Trials: Measuring the Sperling Comfort Index ($W_z$) to validate ride quality.

3. Ultrasonic & X-Ray Inspection: 100% weld integrity verification.

4. Compliance: Certified to ISO 9001, IRIS (ISO/TS 22163), and UIC standards.

7. Applications

• High-Speed EMU: Aerodynamic bogies for $300\text{ km/h}+$ corridors.

• Intercity & Regional: Durable, low-maintenance bogies for varied track conditions.

• Urban Transit: Compact, high-acceleration bogies for Metro and LRV systems.
