Hopper car Bogie

Product No.：202382215942
Online Inquiry

No matter you need the casting steel bogies for heavy axle load wagon or motor frame bogies for metro or LRT, or you have the requirements of low-cost or complicate, can design and produce the most suitable bogies for your trains.

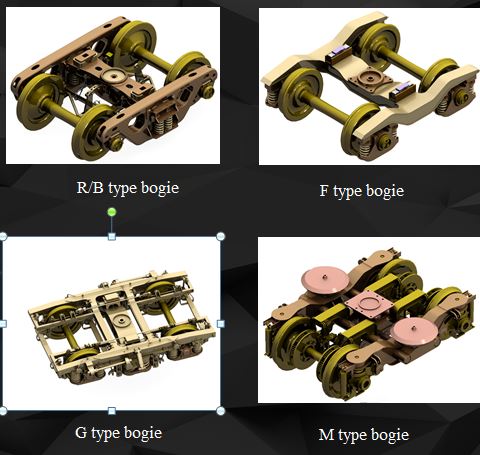

Our types of bogie:

● Economical type of bogie: R80/B80/F80

● Medium type of bogie: R100/B100/F100

● Flapship bogie: B120/F120/G120/M120

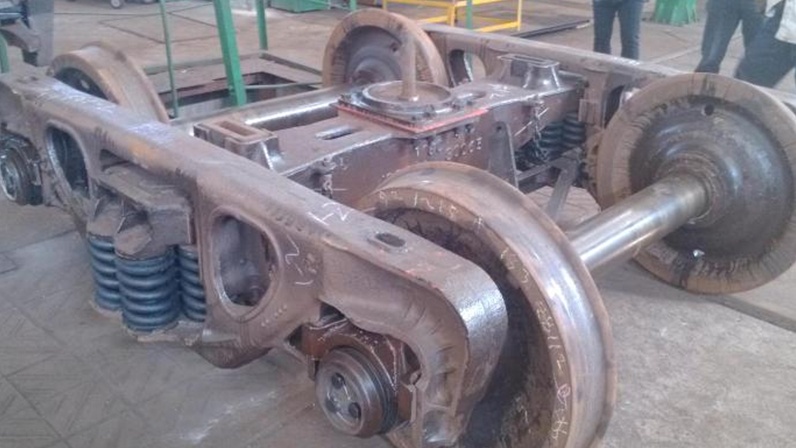

R80/R100/B80/B100/B120 are casting steel bogies

F80/F100/F120 are welded frame bogies

G120 is non-motor welded frame bogie for general passenger car

M120 is motor or non-motor welded frame bogie for metro or LRT

you can choose your bogie type according to the running speed of your train.

Bogie type	R80-1	R100-1	B80-1	B100-1	B120-1
Track gauge	1067 mm	1067 mm	1067 mm	1067 mm	1067 mm
Axle load	20 t	20 t	20 t	20 t	20 t
Running speed	≤80 km/h	≤100 km/h	≤80 km/h	≤100 km/h	≤120 km/h
Tare weight	3.5 t	3.75 t	3.5 t	3.75 t	3.85 t
Material of main parts	B+	B+	B+	B+	B+
Axle roller Bearing:	AAR Class D	AAR Class D	AAR Class D	AAR Class D	AAR Class D

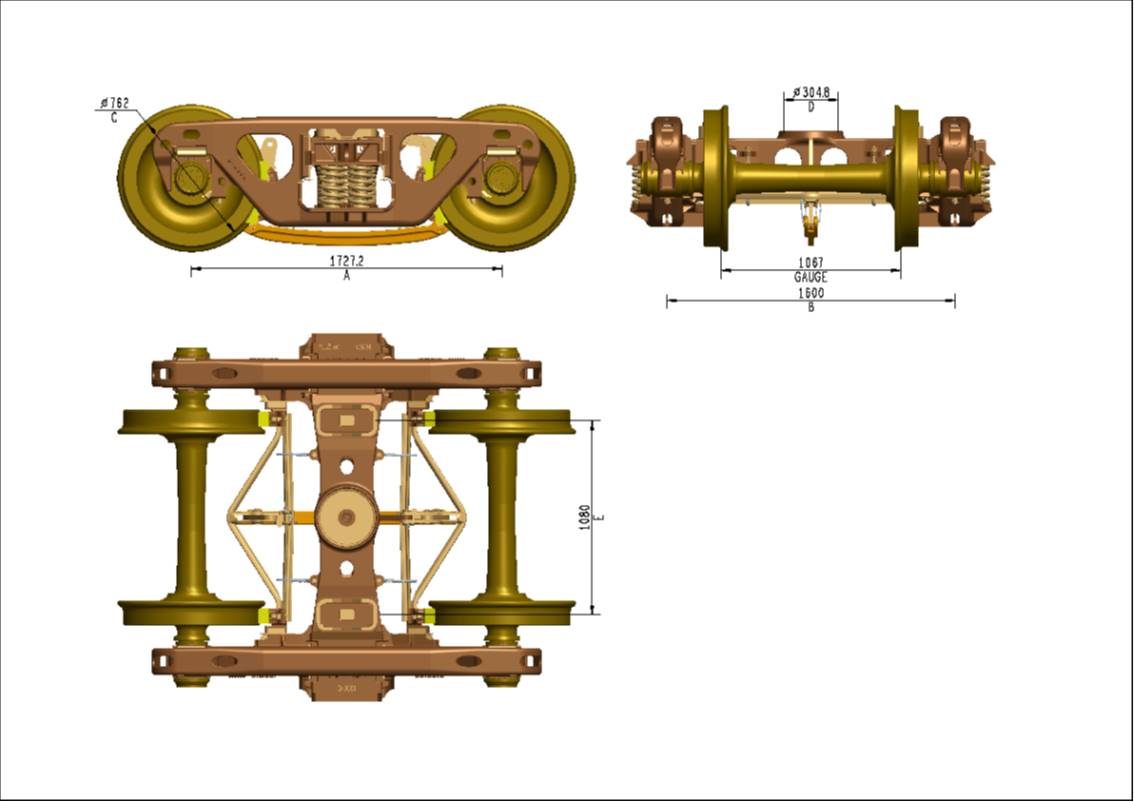

Wheel base (A)	1727.2 mm	1727.2 mm	1727.2 mm	1727.2 mm	1727.2 mm
Distance between journal centers (B)	1600 mm	1600 mm	1600 mm	1600 mm	1600 mm
Wheel diameter (C)	762 mm	840 mm	762 mm	840 mm	840 mm
Diameter of bogie center plate (D)	304.8 mm	304.8 mm	304.8 mm	304.8 mm	304.8 mm
Distance between side bearers (E)	1080 mm	1080 mm	1080 mm	1080 mm	1080 mm
Bogie center plate with liner	Steel	Steel	Steel	Steel	Steel
Side bearers type	Clearence	Elastic	Clearence	Elastic	Elastic
Brake type	lever	lever	lever	lever	lever
Brake shoe type	AAR H4	AAR H4	AAR H4	AAR H4	AAR H4

matter you need the casting steel bogies for heavy axle load wagon or motor frame bogies for metro or LRT, or you have the requirements of low-cost or complicate, FETHRAIL can design and produce the most suitable bogies for your trains.

Our types of bogie:

● economical type of bogie: R80/B80/F80

● medium type of bogie: R100/B100/F100

● flapship bogie: B120/F120/G120/M120

R80/R100/B80/B100/B120 are casting steel bogies

F80/F100/F120 are welded frame bogies

G120 is non-motor welded frame bogie for general passenger car

M120 is motor or non-motor welded frame bogie for metro or LRT

you can choose your bogie type according to the running speed of your train.
