Product Overview

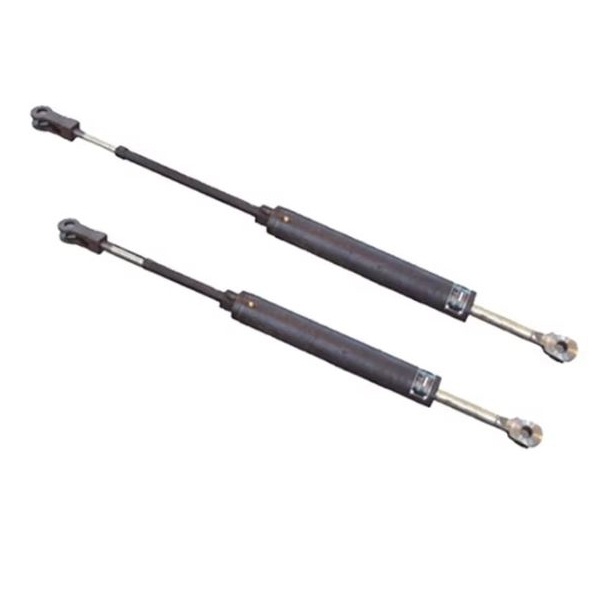

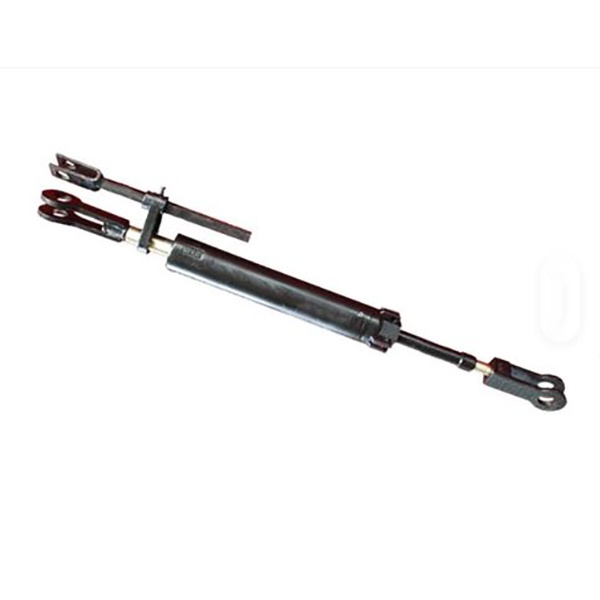

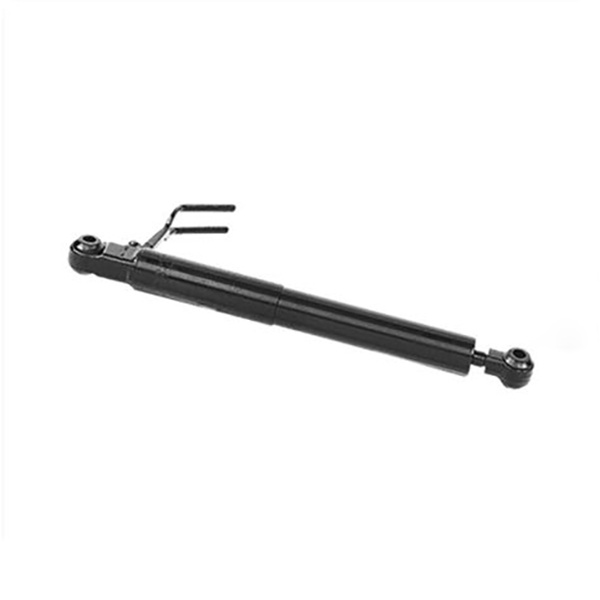

The 600mm Stroke Railway Automatic Slack Adjuster is a precision-engineered brake rigging component designed to automatically maintain proper clearance between brake blocks and wheel treads on freight railcars. Also known as a brake regulator, this device is installed as an integral part of the mechanical pull rod linkage in the brake system.

As a double-acting slack adjuster, it automatically compensates for brake block and wheel wear in both directions—it takes up slack when clearances become excessive (due to wear) and pays out slack when clearances become too small (such as after replacing worn brake blocks with new ones). This ensures that the brake cylinder piston stroke remains within its optimal operating range at all times, delivering consistent and reliable braking performance.

The 600mm stroke capacity is specifically designed for freight wagon applications, distinguishing it from 450mm versions used on passenger coaches.

Key Features & Technical Benefits

Quick Specifications

Technical Data Sheet – 600mm Railway Automatic Slack Adjuster

1. Scope of Application

This document defines the technical requirements, functional specifications, and performance criteria for the 600mm Stroke Automatic Slack Adjuster intended for use in freight wagon brake rigging systems.

The slack adjuster is a double-acting, rapid-working mechanical device designed to automatically maintain the correct brake block-to-wheel tread clearance (slack) throughout the service life of the braking components. It is installed as a pull rod member within the brake rigging linkage.

Applications include:

• Freight wagons and railcars

• Unit trains and heavy-haul freight operations

• Standard-gauge and broad-gauge rolling stock (as per application)

2. Applicable Standards & References

3. Functional Principle

The slack adjuster operates on a non-self-locking screw thread mechanism with two nuts (adjuster nut and leader nut) in clutch engagement with the barrel and traction sleeve.

The "A" dimension—the distance measured between the control rod head and the barrel end when brakes are fully released—is the controlling feature. This dimension corresponds to the correct clearance setting.

Three operating conditions:

• Correct Slack: No adjustment occurs; the 'A' dimension remains unchanged.

• Excess Slack (Brake block wear): The adjuster takes up slack by rotating the nuts on the spindle to shorten the adjuster length.

• Insufficient Slack (New brake blocks): The adjuster pays out slack by rotating in the reverse direction to lengthen the adjuster.

4. Key Specifications

5. Construction & Components

The slack adjuster comprises the following main sub-assemblies:

6. Performance Characteristics

6.1 Automatic Control

• Once initially set, no manual adjustment is required during service.

• 'A' dimension is maintained throughout the product lifecycle.

6.2 Rapid Working

• Correct clearance is restored within one or two brake applications.

• Prevents false pay-out under heavy brake rigging resistance (e.g., ice coating on brake shoes).

6.3 Shock Resistance

• Parts remain securely locked when brakes are released.

• Train shocks and vibrations will not cause false slack adjustment.

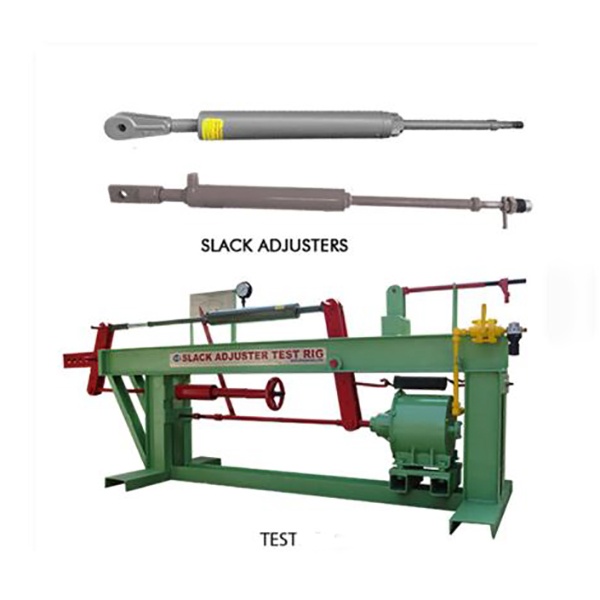

7. Testing Requirements (per RDSO 07-ABR-92)

8. Marking & Traceability

Each slack adjuster shall be permanently marked with:

• Model designation (e.g., IRSA-600 or equivalent)

• Manufacturer's identification mark

• Heat number / batch code for full traceability

• Applicable standard reference

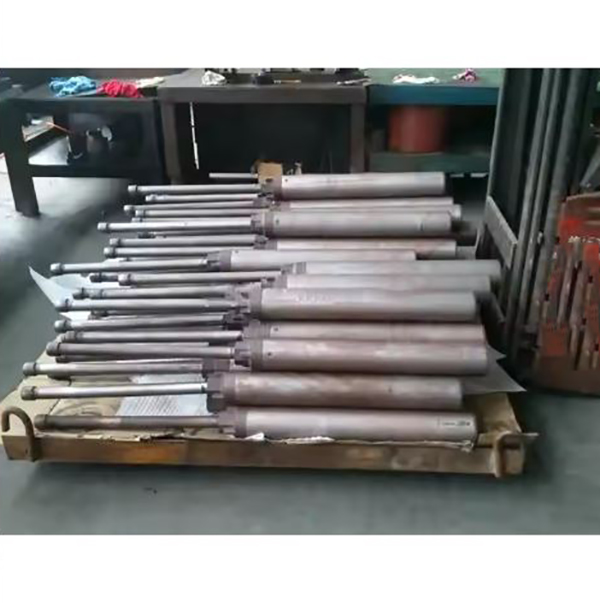

9. Packaging & Protection
